Y09-310NW Laser Airborne Particle Counter With High Resolution

Basic Information
Place of Origin: JIANGSU
Brand Name: SUJING
Model Number: Y09-310NW
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 500unit/per month
Detail Information
Size Channels: 0.3, 0.5, 1, 3, 5, 10 μm Flow Rate: 28.3L/min (Imported Pump)
Operating Time: More Than 5.5 Hours Weight: 3.5kg
Class: ISO14644-1:2015 Maximum Rated Particle Concentration: 35000 Particles/L
High Light:

28.3L/min airborne particle counter


80W airborne particle counter



Product Description

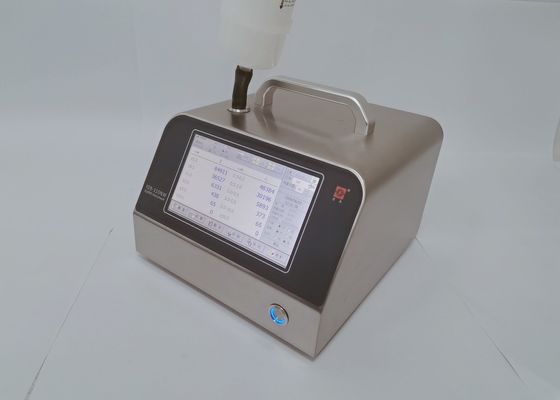

Y09-310NW Laser Airborne Particle Counter High Resolution


28.3L/min touch screen Laser Airborne Particle Counter is a new style particle counter with big flow rate (28.3L/min), friendly interface and high-resolution color touch screen, easy to used. It's used for measuring the particle size and counting the number of the particles. The model y09-310NW can finish sampling a cubic meter quickly and exactly in 36 minutes, confirm the class of the clean room and print out the test result quickly, meet the ISO 14644 absolutely. The instrument monitor the quantity and the changes of the particles in 6 particle channels simultaneously, It's widely used in testing particles of clean room, researching the airborne particle, evaluating quality of the indoor air, it also used for testing the performance of the filter and judging purify class


The specification of portable particle counter


Outside Dim 245*268*160 (mm3); (Wide*Deep*High)
Display 7 inch touch screen
Weight 3.5Kg
Max. Consumption 80W
Power Source DC16.8V built-in Lithium Battery; AC 220V ± 10%
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Calculation 95% UCL calculation, can display and print particle concentration (particles / cubic meter, particles /cubic feet)
Flow Rate 28.3L/min (Imported Pump)
Sample Time 6s---999999s (Selectable)
Cycles 0-99
Hold Time 0-9999s
Delay Time 5-999s
Zero Court <=10min
Location 1-99
Alarm ISO Class
Printer Built-in Thermal Printer
Data Storage 20000Samples /300 Samples of UCL (With PC Software)
Light Source Laser Diode (30,000 hours Mean Time Between Failures)
Counting efficiency 50% @ 0.3μm and 100% for particles >0.45μm (ISO21501)
Maximum Rated Particle Concentration 35000 particles/L
Operating Time More than 5.5 hours
Environmental Temperature Temperature :10 -35; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa


Y09-310NW Laser Airborne Particle Counter With High Resolution 0

Features of air particle counter

1. Sample volume 28.3 LPM (1.0CFM).
2. Simultaneously display of up to six particle sizes

3. 20000-record data storage memory

4. Meet the requirements of ISO14644-1:2015

​5.Built-in Thermal Printer

6.Low power display




Y09-310NW Laser Airborne Particle Counter With High Resolution 1
