Cleanroom Monitoring Portable Air Particle Counter Y09-550
| Brand Name: | Sujing |
| Model Number: | Y09-550 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
China
Name:
Y09-550 Portable Air Particle Counter Cleanroom Monitoring
Flow Rate:
50LPM
Sensitivity:
0.5
Light Source:
Laser Diode
N.W:
8.4KG
Warranty Ti,e:
1 Year
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
Y09-550 Portable Air Particle Counter
,50LPM Portable Air Particle Counter
,DC16.8V Portable Air Particle Counter
Product Description

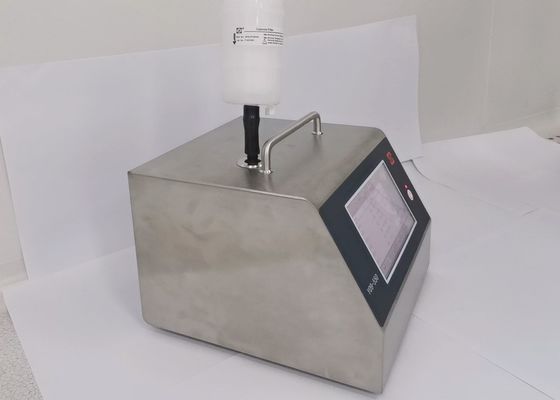

Y09-550 Portable Air Particle Counter Cleanroom Monitoring
Y09-550 Particle Counter can be used as a mobile counter to localize source of particles, and it comes with a full range of accessories for monitoring in different applications, including high-pressure gas.It features a chemical-resistant, stainless-steel case that is easy to clean/wipe down and is designed to minimize particle traps.
Specification of Air Particle Counter
| Model | Y09-550 |
| Outside Dim | 268×192×292(mm3) |
| Display | 7inch Color Screen |
| Weight | 8.4kg |
| Max.Consumption | 80W |
| Power Source | DC16.8V |
| Size Channels | 0.5, 1, 3, 5, 10, 25μm |
| Flow Rate | 50L/min |
| Sample Time | 6~999999s(Selectable) |
| Zero Count | ≤10min |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa |
| Material | SUS316L Stainless Steel |
| Class | ISO14644-1:2015/GMP:2015 |
Application of particle counter
• Cleanroom Monitoring
• Facility Certification
• Facility Monitoring
• Filter Testing
• Cleanroom Laundries
• Cleanroom Packing
• Aerospace
• Hospital Surgical Rooms
• Pharmaceutical
• Paint Spray Booths
•Food Processing Area
•Hard Disk Drive Manufacturing
