| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-550 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Sensitivity 0.5μm Particle Counter Hospital Surgical Rooms | Flow Rate: | 50LPM |
|---|---|---|---|
| Sensitivity: | 0.5 | Light Source: | Laser Diode |
| N.W: | 8.4KG | Warranty Ti,e: | 1 Year |
| Highlight: | Sensitivity 0.5um Air Particle Counter,50LPM Air Particle Counter,80W Laser Diode Air Particle Counter |
||

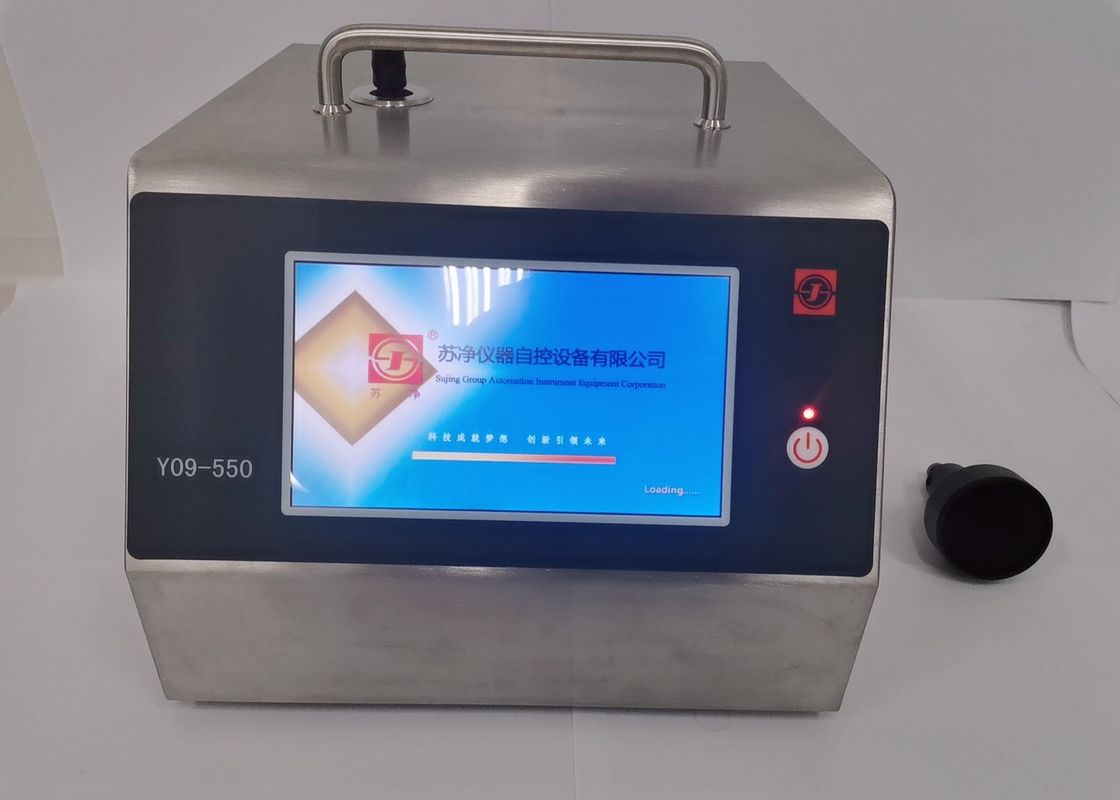

Y09-550 Portable Air Particle Counter Cleanroom Monitoring
Y09 incorporate our Extreme Life Laser Diode Technology sensor to produce the industry’s long life-time laser diode.
The Y09-550 is the industry’s 50 LPM 0.5 micron portable designed for continuous use.
The Y09 are adopted the industry’s UI (User Interface) to configure andoperate the instrument. The intuitive ICON-driven screens and menus are easy to learn and use, and support multiple languages.
Specification of Air Particle Counter
| Model | Y09-550 |
| Outside Dim | 268×192×292(mm3) |
| Display | 7inch Color Screen |
| Weight | 8.4kg |
| Max.Consumption | 80W |
| Power Source | DC16.8V |
| Size Channels | 0.5, 1, 3, 5, 10, 25μm |
| Flow Rate | 50L/min |
| Sample Time | 6~999999s(Selectable) |
| Zero Count | ≤10min |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa |
| Material | SUS316L Stainless Steel |
| Class | ISO14644-1:2015/GMP:2015 |
| Warranty Time | 1 Year |
Application of particle counter
• Cleanroom Monitoring
• Facility Certification
• Facility Monitoring
• Filter Testing
• Cleanroom Laundries
• Cleanroom Packing
• Aerospace
• Hospital Surgical Rooms
• Pharmaceutical
• Paint Spray Booths
•Food Processing Area
•Hard Disk Drive Manufacturing
