| Place of Origin: | China |
|---|---|
| Brand Name: | SUJING |
| Model Number: | LE100 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | 320(L)×309(W)×394(H) Mm Liquid Particle Counter | Particle Size Channel: | 24 |
|---|---|---|---|
| Display: | 7inch LCD Color Touch Screen | Sample Stirring Method: | Magnetic Stirring (adjustable) |
| Data Output: | RS232 Port, USB, Built-in Printer | Warranty Time: | 1 Year |
| High Light: | 5ml Electronic Particle Counter,60HZ Electronic Particle Counter,FDA Electronic Particle Counter |
||

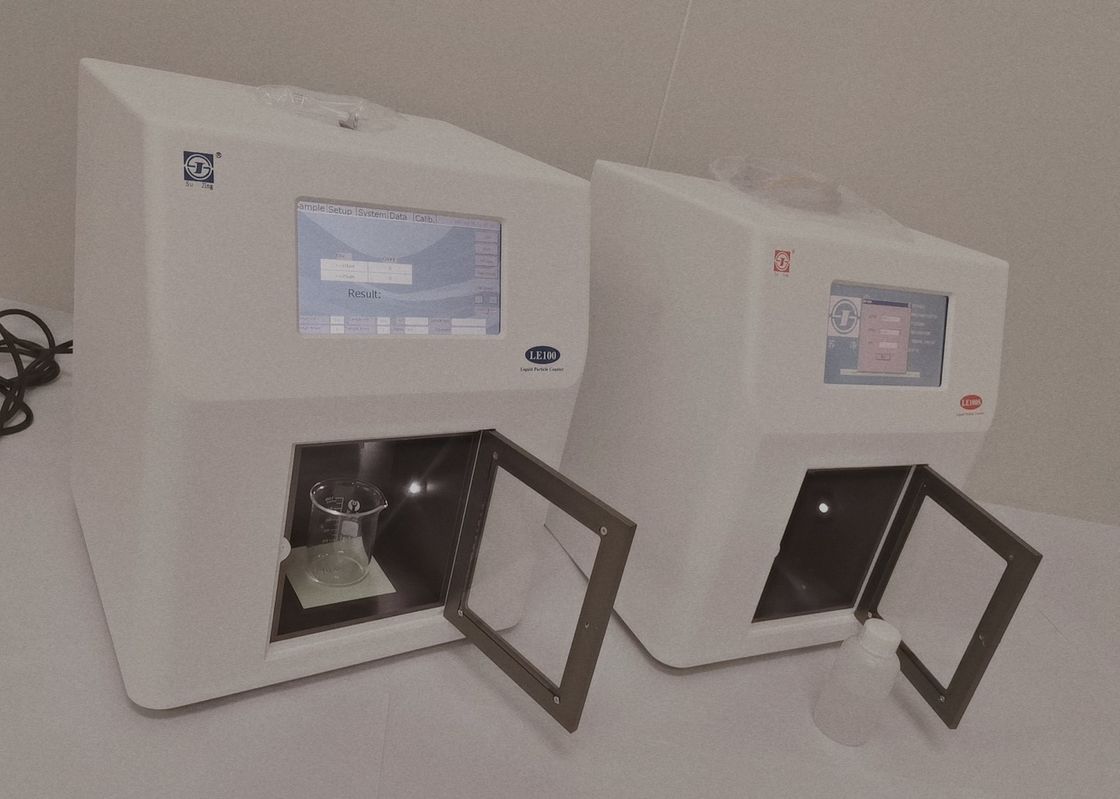

320(L)×309(W)×394(H) mm Liquid Particle Counter FDA 21 CFR part 11
This liquid particle counter can be used for particle detection in organic, colored and transparent, oil-based liquid samples.
| Technical parameters | liquid particle counter |
| Particle size range | 2-400 μm |
| Particle size channel | 24 |
| Maximum detection concentration | 10000 particles/ml |
| Accuracy | ±10% |
| Repeatability | RSD<2% (particles>1000 per ml, 5ml sample) |
| Resolution | <10% (U.S.P, ISO 21501) |
| Syringe specifications | 1ml, 5ml, 10ml*, 25ml |
| Sampling speed | 20 ml/min* |
| Sample volume accuracy | ±1% |
| Minimum sampling volume | 0.2ml** |
| Sensor material | 316 stainless steel, quartz glass, PTFE, NBR |
| Power supply | AC 100~240V, 50/60HZ |
| Mixing method | Magnetic stirrer (speed adjustable) |
| Data output | RS232 port; USB; built-in thermal printer |
| Display output | 7 inch LCD color touch screen |
| Size | 320(L)×309(W)×394(H) mm |
| Weight | 11.0 kg |
| Operating environment | Temperature 10-40 ℃; RH 0 ~ 95% non-condensing |
| Software system | LE-Assistant (optional) |
|
* Standard configuration ** Under 1ml syringe specifications the minimum sampling volume is 0.2ml, under the standard configuration, the minimum sampling volume is 0.4ml |
|
Features of liquid particle counter
Built-in USP testing standards
Precision syringe sampling device, accurate sampling volume, stable speed
Built-in calibration curve, in line with calibration requirements of ISO-21501
Intelligent automatic detection and automatic calibration function, instrument performance judgment and calibration
Use of magnetic stirring, stirring speed adjustable
USB interface direct export data, paperless electronic print report
Powerful application software development support. Easy to connect to the laboratory information management system etc.
The LE-Assistant software implements PC control and provides professional data processing
Compliant with FDA 21 CFR part 11 "Electronic Records and Signatures" and user rating management
| 8.Exhaust fan | 1. Display |
| 9.heat emission hole | 2. Door of sample chamber |
| 10. Power switch | 3. Thermal printer |
| 11. AC power outlet and fuse | 4. Syringe |
| 12. R232 port | 5. Sample tube |
| 13. Sample drain | 6. LED chamber light |
| 14. USB port | 7. Stirrer |
