Condensation Particle Counter With Built In Thermal Printer
|

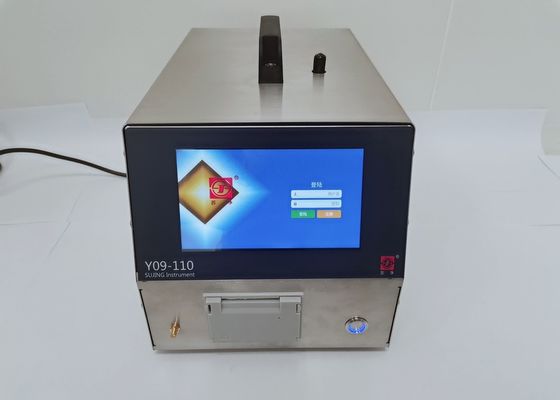

Condensation Particle Counter With Built In Thermal Printer
| Brand Name: | SUJING |
| Model Number: | Y09-101/Y09-110 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500unit/per month |
Detail Information
Place of Origin:
CHINA
Name:
Condensation Laser Particle Counter With Built-In Thermal Printer
Outside Dim:
300*360*126mm3 (width*length*high)
Size Channels:
0.1, 0.2, 0.3, 0.5, 1.0 μm
Weight:
6kg
Zero Time:
<=10min
Environmental Temperature:
Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
500unit/per month
Highlight:
Y09-110 Condensation Particle Counter
,48W Condensation Particle Counter
,2.83L/min Condensation Particle Counter
Product Description
Condensation Laser Particle Counter With Built-In Thermal Printer
The Condensation Laser Particle Counter With Built-In Thermal Printer is designed to operate in ISO Class 1 to Class 7 cleanrooms without concerns of it degrading its environment or exceeding concentration limits.
The specification of Condensation Particle Counter
| Specification | Y09-101 particle counter | Y09-110 particle counter |
| Outside Dim | 300*360*126mm3 (width*length*high) | |
| Display | 7 inch color screen | |
| Weight | 6kg | 7Kg |
| Max. Consumption | 48W | 80W |
| Power Source | AC 220V ± 10% | |
| Size Channels | 0.1, 0.2, 0.3, 0.5, 1.0 μm | |
| Flow Rate | 2.83L/min | 28.3L/min |
| Zero Time | <=10min | |
| Maximum Rated Particle Concentration | 35000 particles/L | |
| Environmental Temperature | Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa | |
Features of Condensation Particle Counter
- 0.1 micron particle counters
- laser sensor
- Six size channels from 0.1 to 1.0 μm
- Saves up to 20,000 samples for review, sorting, data filtering and printing
- USB data download to flash memory key
- Built-in thermal printer
- Large, 7 inch touchscreen can be used when wearing gloves for simplified use
- Quiet blower/pump for portable applications
- Calculations and reports for ISO 14644-1
Application of Condensation Particle Counter
• Cleanroom Monitoring
• Facility Certification Testing
• Trend Analysis
• Tool and Equipment Testing
• Multi-Point Facility Monitoring
• Compressed Gas Monitoring
(with High Pressure Controller)
