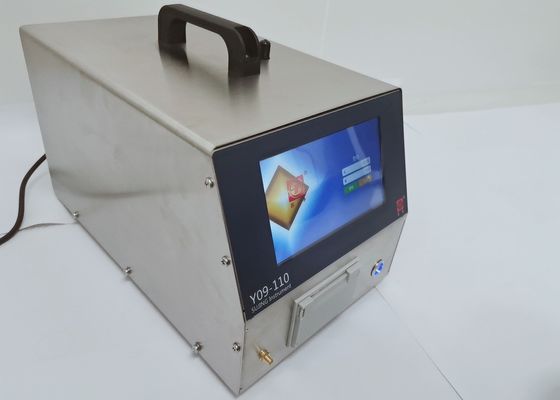

Real Time Cleanroom 0.1uM Condensation Particle Counter 80W
|
Real Time Cleanroom 0.1uM Condensation Particle Counter 80W
| Brand Name: | SUJING |
| Model Number: | Y09-101/Y09-110 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500unit/per month |
Detail Information
Place of Origin:
CHINA
Name:
0.1μm Condensation Portable Air Particle Counter In Cleanroom
Size Channels:
0.1, 0.2, 0.3, 0.5, 1.0 μm
Display:
7inch LCD Color Touch Screen
Flow Rate:
28.3L/min (Imported Pump)
Operating Time:
More Than 5.5 Hours
Warranty Time:
1 Year
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
500unit/per month
Highlight:
0.1uM Condensation Particle Counter
,Condensation Particle Counter 28.3L/min
,Condensation Particle Counter 80W
Product Description
0.1μm Condensation Portable Air Particle Counter In Cleanroom
0.1μm Condensation Portable Air Particle Counter In Cleanroom is a laser diode-based true 0.1 micron (μm) particle counter with 1.00 CFM flow rate. It provides real-time measurement of yield-impacting particles with three configurations to meet your unique application needs.
The specification of Condensation Particle Counter
| Specification | Y09-101 particle counter | Y09-110 particle counter |
| Outside Dim | 300*360*126mm3 (width*length*high) | |
| Display | 7 inch color screen | |
| Weight | 6kg | 7Kg |
| Max. Consumption | 48W | 80W |
| Power Source | AC 220V ± 10% | |
| Size Channels | 0.1, 0.2, 0.3, 0.5, 1.0 μm | |
| Flow Rate | 2.83L/min | 28.3L/min |
| Zero Time | <=10min | |
| Maximum Rated Particle Concentration | 35000 particles/L | |
| Environmental Temperature | Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa | |
Features of Condensation Particle Counter
- 0.1 micron particle counters
- laser sensor
- Six size channels from 0.1 to 1.0 μm
- Saves up to 20,000 samples for review, sorting, data filtering and printing
- USB data download to flash memory key
- Built-in thermal printer
- Large, 7 inch touchscreen can be used when wearing gloves for simplified use
- Quiet blower/pump for portable applications
- Calculations and reports for ISO 14644-1
Application of Condensation Particle Counter
- Cleanroom and minienvironment airborne particle counting
- High-sensitivity applications
- Facility certification to ISO 14644-1 or FS 209E
- Troubleshooting/mobile applications
- Process gas monitoring (with High Pressure Diffuser)
- Ultraclean zones (ISO 1-2)
