Y09-101 Condensation Portable Airborne Particle Counter 0.5uM
|
Y09-101 Condensation Portable Airborne Particle Counter 0.5uM
| Brand Name: | SUJING |
| Model Number: | Y09-101/Y09-110 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500unit/per month |
Detail Information
Place of Origin:
CHINA
Name:
Y09-101/Y09-110 Condensation Portable Airborne Particle Counter
Size Channels:
0.1, 0.2, 0.3, 0.5, 1.0 μm
Display:
7inch LCD Color Touch Screen
Zero Time:
<=10min
Environmental Temperature:
Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa
Warranty Time:
1 Year
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
500unit/per month
Highlight:
0.5uM Portable Airborne Particle Counter
,Y09-101 Portable Airborne Particle Counter
,80W Portable Airborne Particle Counter
Product Description

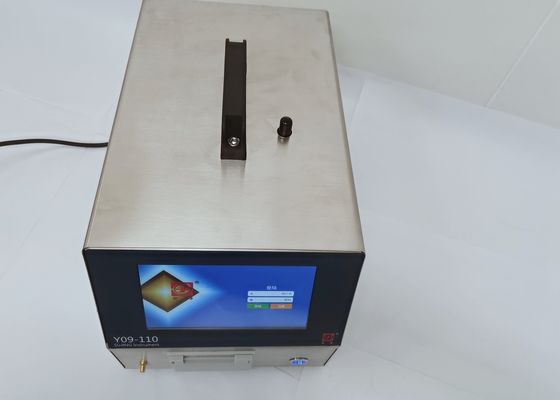

Y09-101/Y09-110 Condensation Portable Airborne Particle Counter
Y09-101/Y09-110 Condensation Portable Airborne Particle Counter features a chemical-resistant, stainless-steel case that is easy to clean/wipe down and is designed to minimize particle traps
The specification of Condensation Particle Counter
| Specification | Y09-101 particle counter | Y09-110 particle counter |
| Outside Dim | 300*360*126mm3 (width*length*high) | |
| Display | 7 inch color screen | |
| Weight | 6kg | 7Kg |
| Max. Consumption | 48W | 80W |
| Power Source | AC 220V ± 10% | |
| Size Channels | 0.1, 0.2, 0.3, 0.5, 1.0 μm | |
| Flow Rate | 2.83L/min | 28.3L/min |
| Zero Time | <=10min | |
| Maximum Rated Particle Concentration | 35000 particles/L | |
| Environmental Temperature | Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa | |
Features of Condensation Particle Counter
- 0.1 micron particle counters
- laser sensor
- Six size channels from 0.1 to 1.0 μm
- Saves up to 20,000 samples for review, sorting, data filtering and printing
- USB data download to flash memory key
- Built-in thermal printer
- Large, 7 inch touchscreen can be used when wearing gloves for simplified use
- Quiet blower/pump for portable applications
- Calculations and reports for ISO 14644-1
Application of Condensation Particle Counter
- Cleanroom and minienvironment airborne particle counting
- High-sensitivity applications
- Facility certification to ISO 14644-1 or FS 209E
- Troubleshooting/mobile applications
- Process gas monitoring (with High Pressure Diffuser)
- Ultraclean zones (ISO 1-2)
