| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-101/Y09-110 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500unit/per month |
| Name: | 7 Inch Color Screen Condensation Particle Cleanroom Monitoring | Size Channels: | 0.1, 0.2, 0.3, 0.5, 1.0 μm |
|---|---|---|---|
| Display: | 7inch LCD Color Touch Screen | Zero Time: | <=10min |
| Environmental Temperature: | Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa | Warranty Time: | 1 Year |
| Highlight: | 0.3um pharmaceutical particle counter,48W pharmaceutical particle counter,86Kpa pharmaceutical particle counter |
||

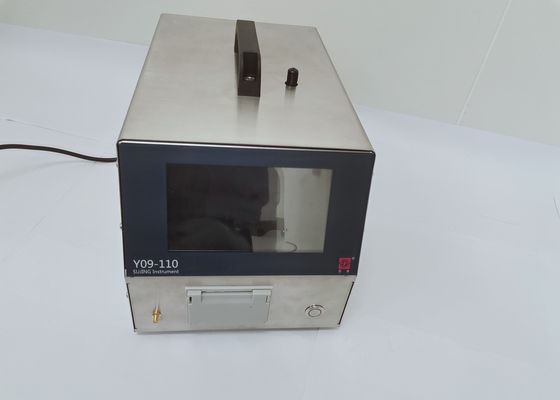

7 Inch Color Screen Condensation Particle Cleanroom Monitoring
Flexible communications with these instruments is made possible by the integrated Ethernet, RS-485, USB and USB FlashDrive interfaces. particle counter are designed, manufactured and calibrated to ISO 21501-4 to ensure particle counting accuracy
The specification of Condensation Particle Counter
| Specification | Y09-101 particle counter | Y09-110 particle counter |
| Outside Dim | 300*360*126mm3 (width*length*high) | |
| Display | 7 inch color screen | |
| Weight | 6kg | 7Kg |
| Max. Consumption | 48W | 80W |
| Power Source | AC 220V ± 10% | |
| Size Channels | 0.1, 0.2, 0.3, 0.5, 1.0 μm | |
| Flow Rate | 2.83L/min | 28.3L/min |
| Zero Time | <=10min | |
| Maximum Rated Particle Concentration | 35000 particles/L | |
| Environmental Temperature | Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa | |
Features of Condensation Particle Counter
Application of Condensation Particle Counter
• Cleanroom Monitoring
• Facility Certification Testing
• Trend Analysis
• Tool and Equipment Testing
• Multi-Point Facility Monitoring
• Compressed Gas Monitoring
(with High Pressure Controller)
