| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | SJFC-200 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | SJFC-200 Laser Dust Meter Dust Particle Measuring Instrument | Outside Dim: | 200×160×90(Wide×High×Deep) |
|---|---|---|---|
| Display: | 3.5 Inch Color Screen(optional) | Weight: | 2.5KG |
| Size Channels: | PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) | Detection Range: | 0-40mg/m3 |
| High Light: | 10W particle measuring device,PM1.0 particle measuring device,40mg/m3 particle measuring device |
||
SJFC-200 Laser Dust Meter Dust Particle Measuring Instrument
SJFC-200 Laser Dust Meter Dust Particle Measuring Instrument is a dust detector made by the principle of laser scattering and the use of pumping and sampling.
It mainly tests the particulate matter suspended in the air, and the data output is the concentration weight mode.
The specification of dust particle measurement
| Outside Dim | 200×160×90(Wide×High×Deep) |
| Display | 3.5 inch color screen(optional) |
| Battery | built-in 5200mah li-ion Battery(optional) |
| Weight | 2.5kg |
| Max.Consumption | 10W |
| Power Source | DC12-24V |
| Size channels | PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) |
| Flow Rate | 1L/min ±5% flow (long life pump) |
| Sample Time | 1-999s Selectable, ≥6s recommended |
| Sensibility | 0.1µg/m3 |
| Repeatability | ≤±2% |
| Accuracy | ≤±10% |
| Detection Range | 0-40mg/m3 |
| Data Output | RS485 / RS232 |
| Comm. protocol | Modbus RTU |
| Operating Time | 5 hours |
| Optional parameters | Temperature, RH, combustible gas, oxygen, carbon dioxide, etc. |
| Data records | 2000 |
| Environmental |
Temperature: -10-50℃; Humidity:<85%RH; Atmosphere Pressure:86-106Kpa |
| Accessories |
Carrying case, power adapter, zero count filter , Optional: explosion protective and outdoor protective case |

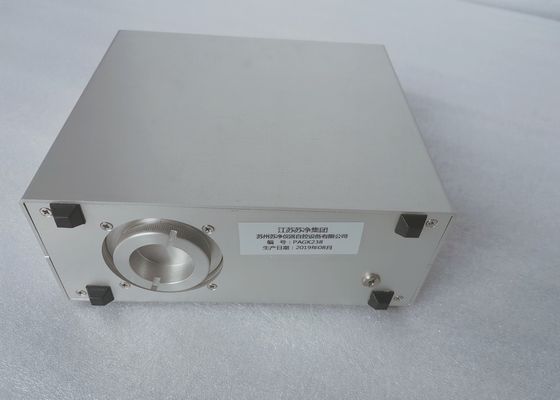

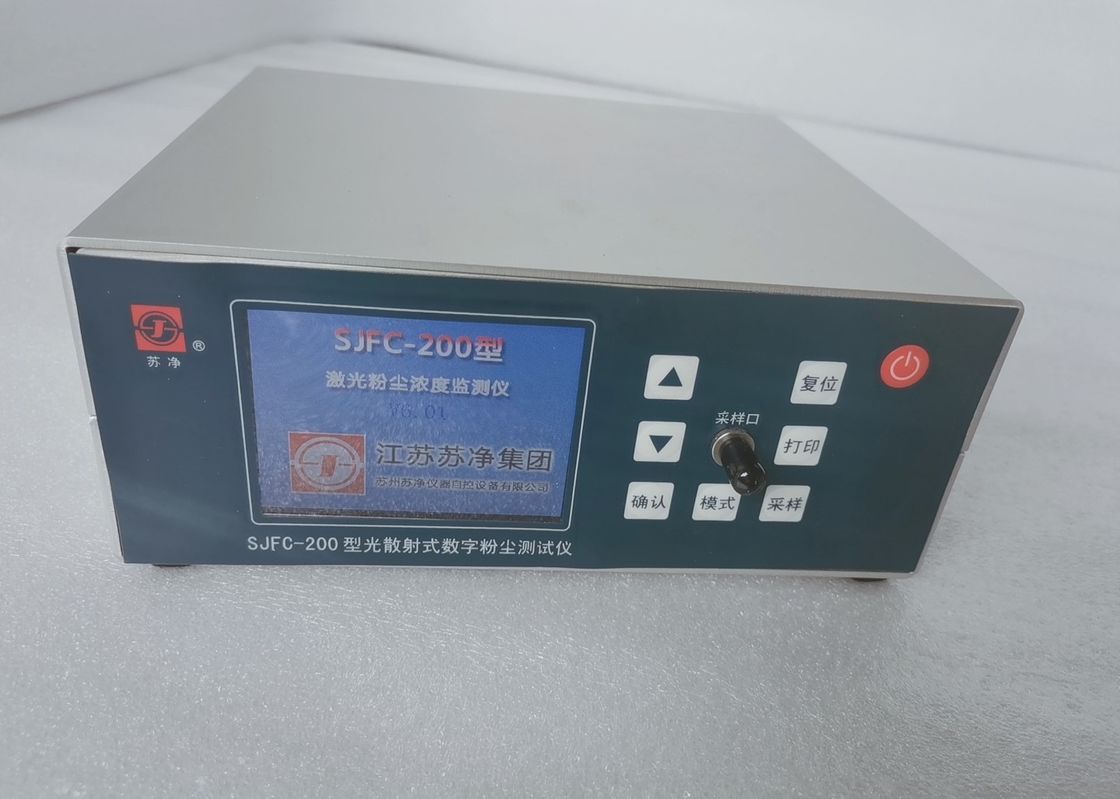

The picture of dust particle measurement
