Name: | SJFC-200 Color Screen Dust Particle Measurement Air Dust Meter | Outside Dim: | 200×160×90(Wide×High×Deep) |
---|---|---|---|
Display: | 3.5 Inch Color Screen(optional) | Weight: | 2.5KG |
Size Channels: | PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) | Detection Range: | 0-40mg/m3 |
High Light: | 40mg/m3 Air Dust meter,PM1.0 Air Dust meter,DC12V Air Dust meter |
SJFC-200 Color Screen Dust Particle Measurement Air Dust Meter
SJFC-200 Color Screen Dust Particle Measurement Air Dust Meter is used to measure the mass concentration of dust in unit volume of air. It is a high-tech product integrating optics and laser technology, electronic technology, confidential machinery, aerodynamics and other disciplines. It has the characteristics of high measurement accuracy, reasonable detection, stable performance, diverse functions, unique shape, small volume, light weight, convenient detection and carrying
The specification of dust particle measurement
Outside Dim | 200×160×90(Wide×High×Deep) |
Display | 3.5 inch color screen(optional) |
Battery | built-in 5200mah li-ion Battery(optional) |
Weight | 2.5kg |
Max.Consumption | 10W |
Power Source | DC12-24V |
Size channels | PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) |
Flow Rate | 1L/min ±5% flow (long life pump) |
Sample Time | 1-999s Selectable, ≥6s recommended |
Sensibility | 0.1µg/m3 |
Repeatability | ≤±2% |
Accuracy | ≤±10% |
Detection Range | 0-40mg/m3 |
Data Output | RS485 / RS232 |
Comm. protocol | Modbus RTU |
Operating Time | 5 hours |
Optional parameters | Temperature, RH, combustible gas, oxygen, carbon dioxide, etc. |
Data records | 2000 |
Environmental |
Temperature: -10-50℃; Humidity:<85%RH; Atmosphere Pressure:86-106Kpa |
Accessories |
Carrying case, power adapter, zero count filter , Optional: explosion protective and outdoor protective case |

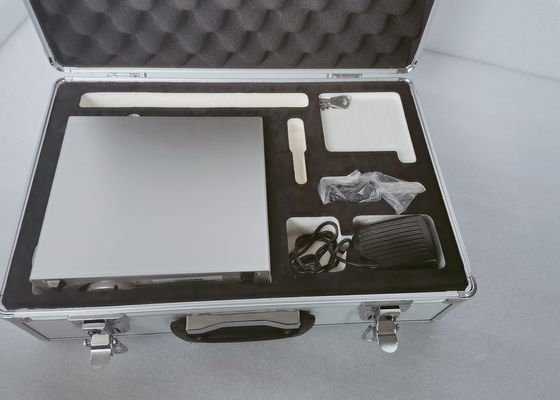

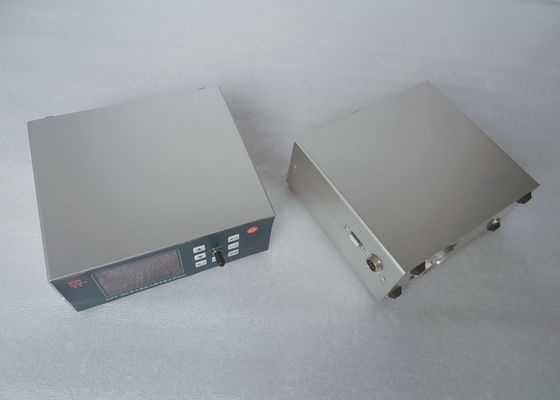

The picture of dust particle measurement
