Y09-3016 Handheld Laser Air Particle Counter 0.1cfm Flow Rate

Basic Information
Place of Origin: China
Brand Name: SUJING
Model Number: Y09-3016
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: Y09-3016 Laser Particle Counter Testing Room Cleanliness Size Channel: 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate: 2.83L/min Alarm: ISO14644-1:2015/GMP:2015
Data Storage: 1000 Samples (With PC Software) Warranty Time: 1 Year

Product Description

Y09-3016 Handheld Laser Air Particle Counter 0.1cfm Flow Rate


The particle counter is for everyday use in environmental measurements, factories and offices to detect the concentration of dust particles to which workers are subjected. Such a particle counter is also used in industrial research and development or in clean rooms. The particle counter is able to aspirate air in order to check the amount of particles.

The Particle Counter measures the concentration of diverse particles in air such as dust, soot, pollen and other aerosol types. It has been designed to detect the exact pollution level in the air. Pollution is usually generated by combustion, material process, manufacturing, energy generation, vehicle emissions and in the building industry.


The parameter of handheld particle counter

Outside Dim 300*360*126 mm3(Wide*Deep*High)
Display LCD
Weight 0.7kg
Battery (Lithium Ion Battery),7.2V,2200mAh
Power Source Li-ion charger ,8.4V DC,1A:9-250V AC, 50-60Hz
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate 2.83L/min
Sample Time 1s-99h
Cycles 0-99
Hold Time 0-999sec
Delay Time 0-99sec
Light source Laser Diode
Zero Court <=10min
Alarm ISO14644-1:2015/GMP:2015
Coincidence Loss 5%,2000000ps/cf
Operating Time more than 5.5 hours
output RS-232 to pc or printer via optional cable
Location Labels 0-999
Data Storage 1000 Samples (With PC Software)
Environmental 10degrees celsius-30degrees celsius ; Humidity: 20%-75% RH ;Atmosphere Pressure 86Kpa-106Kpa
Standard feathure suitcase ;charger;sampling head;line of communication;communication software ;Automatic Purifier
Optional component External printer


Application of  handheld particle counter


• Cleanroom Monitoring

• Facility Certification

• Facility Monitoring

• Filter Testing

• Cleanroom Laundries

• Cleanroom Packing

• Aerospace

• Hospital Surgical Rooms

• Pharmaceutical

• Paint Spray Booths

•Food Processing Area

•Hard Disk Drive Manufacturing

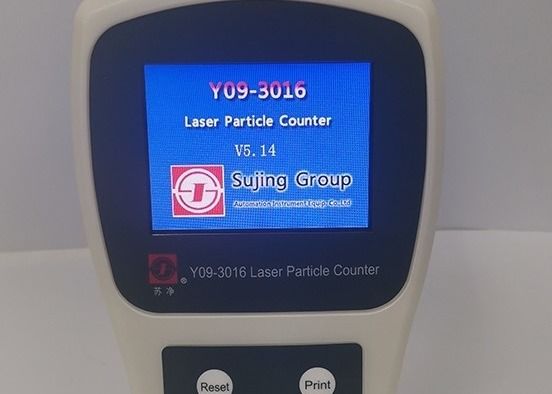

Picture of handheld particle counter
