| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-3016HW |
| Minimum Order Quantity: | 1 |
| Price: | EXWUSD4000/unit |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Y09-3016HW Handheld Air Particle Counter For Pharma Cleanroom | Size Channel: | 0.3, 0.5, 1, 3, 5, 10 μm |
|---|---|---|---|
| Flow Rate: | 0.1cfm | Light Source: | Laser Diode |
| Warranty Time: | 1 Year | Weight: | 1kg |
| High Light: | 2.83L/min Handheld Air Particle Counter,Pharma Cleanroom Air Particle Counter,DC16.8V Handheld Air Particle Counter |
||

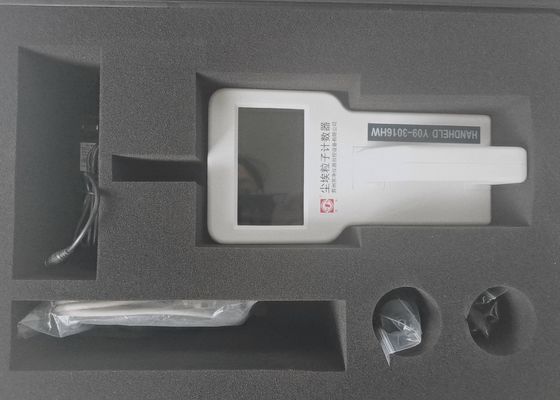

Y09-3016HW Handheld Air Particle Counter For Pharma Cleanroom
Y09-3016HW Handheld Particle Counter is used for particle counting, with 6 channels of 0.3, 0.5, 1, 3, 5 and 10 μ m particle data displayed in real time, The particle counter has built-in long-life laser diode, light collection elliptical lens and unique optical system to provide concentration measurement range. particle counter, vacuum pump, isokinetic sampling head, micro processing circuit, computer interface, all information are displayed on the LCD screen.
Y09-3016HW Handheld Air Particle Counter is ergonomically designed to fit in the palm of your hand.The counter is very rugged and offers true portability while retaining the features and sensitivity of larger particle counters.
Now it is easy to carry a particle counter right to the point of interest and obtain accurate results–results you can immediately print or store to computer. The large color LCD display lets you see the data easily and err-free.
The specification of Y09-310HW air particle counter
| Outside Dim | 245*128*66 mm3 |
| Display | 4.3inch Touch Screen |
| Weight | 1kg |
| Power Source | DC16.8V |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Flow Rate | 2.83L/min |
| Sample Time | 1s-99h |
| Cycles | 0-99 |
| Hold Time | 0-999sec |
| Delay Time | 0-99sec |
| Light source | Laser Diode |
| Zero Court | <=10min |
| Class | ISO14644-1:2015/GMP:2015 |
| Coincidence Loss | 5%,2000000ps/cf |
| Operating Time | more than 4hours |
| Location Labels | 0-999 |
| Data Storage | 100000 Samples (Wifi) |
| Environmental | 10degrees celsius-40degrees celsius ; Humidity: 20%-90% RH ;Atmosphere Pressure 86Kpa-106Kpa |
The Feature of Y09-310HW air particle counter
1. Simultaneously sizes and counts particles in six fixed channels
2. Size sensitivities with 0.3μm,0.5μm,1μm,3μm,5μm,10μm 3.0.1CFM(2.83L/min) sample flow rate
4. 4.3 inch color touch screen display 5.External printer optional 6.One year warranty Company Information
