Laser Diode Dust Particle Counter 2.83L/Min For Cleanroom

Basic Information
Place of Origin: China
Brand Name: Sujing
Model Number: Y09-3016HW
Minimum Order Quantity: 1
Price: EXWUSD4000/unit
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: Y09-3016HW Handheld Air Particle Counter For Pharma Cleanroom Size Channel: 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate: 0.1cfm Light Source: Laser Diode
Warranty Time: 1 Year Weight: 1kg
High Light:

Laser Diode Dust Particle Counter

,

DC16.8V Handheld Laser Particle Counter

,

Dust Particle Counter 2.83L/Min


Product Description

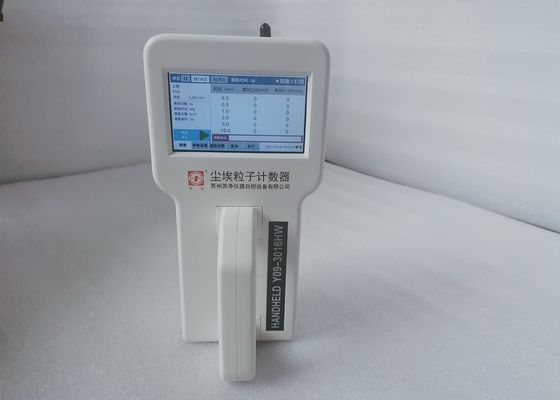

Y09-3016HW Laser Dust Particle Counter (2.83L/Min) For Cleanroom



Y09-3016HW laser dust particle counter (2.83L/min) is used to measure and analyze the size and quantity of dust particles in a unit volume of air in a clean environment, and is a testing instrument to determine the cleanliness level of the clean environment according to the standard. Dust particle counters are widely used in clean workshop inspections in enterprises such as medicine and hygiene, optics, chemistry, food, cosmetics, electronics, biological products, aerospace and so on.



Y09-3016HW Handheld Air Particle Counter is ergonomically designed to fit in the palm of your hand.The counter is very rugged and offers true portability while retaining the features and sensitivity of larger particle counters.



Now it is easy to carry a particle counter right to the point of interest and obtain accurate results–results you can immediately print or store to computer. The large color LCD display lets you see the data easily and err-free.





Laser Diode Dust Particle Counter 2.83L/Min For Cleanroom 0



The specification of Y09-310HW air particle counter

Outside Dim 245*128*66 mm3
Display 4.3inch Touch Screen
Weight 1kg
Power Source DC16.8V
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate 2.83L/min
Sample Time 1s-99h
Cycles 0-99
Hold Time 0-999sec
Delay Time 0-99sec
Light source Laser Diode
Zero Court <=10min
Class ISO14644-1:2015/GMP:2015
Coincidence Loss 5%,2000000ps/cf
Operating Time more than 4hours
Location Labels 0-999
Data Storage 100000 Samples (Wifi)
Environmental 10degrees celsius-40degrees celsius ; Humidity: 20%-90% RH ;Atmosphere Pressure 86Kpa-106Kpa



The Feature of Y09-310HW air particle counter

1. Simultaneously sizes and counts particles in six fixed channels

2. Size sensitivities with 0.3μm,0.5μm,1μm,3μm,5μm,10μm 3.0.1CFM(2.83L/min) sample flow rate

4. 4.3 inch color touch screen display 5.External printer optional 6.One year warranty Company Information
