DC16.8V Power 2.83LPM Air Particle Counter ISO 14644

Basic Information
Place of Origin: China
Brand Name: Sujing
Model Number: Y09-3016HW
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: 2.83LPM Air Particle Counter ISO 14644 Factory Supply Size Channel: 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate: 0.1cfm Light Source: Laser Diode
Warranty Time: 1 Year Weight: 1kg
High Light:

DC16.8V Power Air Particle Counter

,

2.83LPM Air Particle Counter

,

ISO 14644 Air Particle Counter


Product Description

2.83LPM Air Particle Counter ISO 14644 Factory Supply



The dirt particles in the air have the function to scatter the incident light. The density of scattered light is related to grain size. The air containing dirt particles is sucked in from sampling port of the sensors. When it passes through the photoactive area, the dirt particles are shined by the light to scatter optical pulses signal with certain proportion to particle size. The signal is received by photosensor and is converted to corresponding electric pulse signal and then is amplified. By counting the electric pulse in one detection cycle, the quantity of dirt particles in the detected air with unit volume is obtained. This is also the particle concentration.



The sensors used in handheld air quality detector mainly consist of gas circuit system, optical system and data processing system, etc and integrates aerodynamics, digital signal processing and optical, mechanical and electronic to detect the particle quantity of all sizes in air of certain volume quickly and convert to weight calculation data immediately. It has the characteristics of high detection precision, stable performance, strong multiple-function, easy operation and carrying and detection at any time at any place.

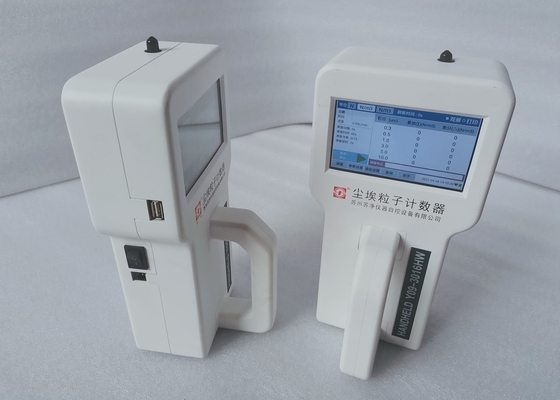

Y09-3016HW Handheld Air Particle Counter is ergonomically designed to fit in the palm of your hand.The counter is very rugged and offers true portability while retaining the features and sensitivity of larger particle counters.

DC16.8V Power 2.83LPM Air Particle Counter ISO 14644 0



The specification of Y09-310HW air particle counter

Outside Dim 245*128*66 mm3
Display 4.3inch Touch Screen
Weight 1kg
Power Source DC16.8V
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate 2.83L/min
Sample Time 1s-99h
Cycles 0-99
Hold Time 0-999sec
Delay Time 0-99sec
Light source Laser Diode
Zero Court <=10min
Class ISO14644-1:2015/GMP:2015
Coincidence Loss 5%,2000000ps/cf
Operating Time more than 4hours
Location Labels 0-999
Data Storage 100000 Samples (Wifi)
Environmental 10degrees celsius-40degrees celsius ; Humidity: 20%-90% RH ;Atmosphere Pressure 86Kpa-106Kpa



The Feature of Y09-310HW air particle counter

1. Simultaneously sizes and counts particles in six fixed channels

2. Size sensitivities with 0.3μm,0.5μm,1μm,3μm,5μm,10μm 3.0.1CFM(2.83L/min) sample flow rate

4. 4.3 inch color touch screen display 5.External printer optional 6.One year warranty Company Information
