Name: | Y09-3016HW Handheld Six Channels Laser Dust Particle Counter | Size Channel: | 0.3, 0.5, 1, 3, 5, 10 μm |
---|---|---|---|
Flow Rate: | 0.1cfm | Light Source: | Laser Diode |
Warranty Time: | 1 Year | Weight: | 1kg |
Highlight: | Six Channels Dust Particle Counter,Laser Diode Light Dust Particle Counter,DC16.8V Dust Meter And Particle Counter |

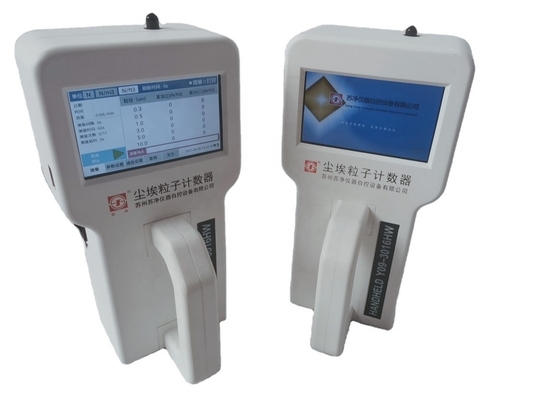

Y09-3016HW Handheld Six Channels Laser Dust Particle Counter
For Y09-3016HW Handheld six channels laser particle counter, the basic operating principle is a laser scattering pulse signal of an aerosol particle output from an optical sensor which is processed and counted based on digital signal processing. The setting of measurement parameters, results display, and data storage are all controlled and realized by an internal microprocessor (MCU).
Y09-3016HW Handheld Air Particle Counter is ergonomically designed to fit in the palm of your hand.The counter is very rugged and offers true portability while retaining the features and sensitivity of larger particle counters.
The specification of Y09-3016HW air particle counter
Outside Dim | 245*128*66 mm3 |
Display | 4.3inch Touch Screen |
Weight | 1kg |
Power Source | DC16.8V |
Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
Flow Rate | 2.83L/min |
Sample Time | 1s-99h |
Cycles | 0-99 |
Hold Time | 0-999sec |
Delay Time | 0-99sec |
Light source | Laser Diode |
Zero Court | <=10min |
Class | ISO14644-1:2015/GMP:2015 |
Coincidence Loss | 5%,2000000ps/cf |
Operating Time | more than 4hours |
Location Labels | 0-999 |
Data Storage | 100000 Samples (Wifi) |
Environmental | 10degrees celsius-40degrees celsius ; Humidity: 20%-90% RH ;Atmosphere Pressure 86Kpa-106Kpa |
The Feature of Y09-3016HW air particle counter
1. Simultaneously sizes and counts particles in six fixed channels
2. Size sensitivities with 0.3μm,0.5μm,1μm,3μm,5μm,10μm 3.0.1CFM(2.83L/min) sample flow rate
4. 4.3 inch color touch screen display 5.External printer optional 6.One year warranty Company Information
