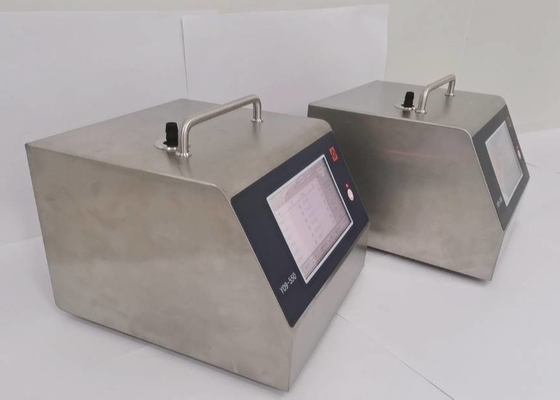

80 Watt Air Portable Laser Particle Counter 50LPM Y09-550

80 Watt Air Portable Laser Particle Counter 50LPM Y09-550
80 Watt Air Portable Laser Particle Counter 50LPM Y09-550

Large Image :  80 Watt Air Portable Laser Particle Counter 50LPM Y09-550

Product Details:
Place of Origin: China
Brand Name: Sujing
Model Number: Y09-550
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Y09-550 Laser Sensor Air Portable Laser Particle Counter 50LPM Flow Rate: 100LPM
Warranty Time: 1 Year Weight: 8.4kg
Operating Time: More Than 5.5 Hours Maximum Rated Particle Concentration: 35000 Particles/L
High Light:

80 Watt Portable Laser Particle Counter

,

50LPM Portable Laser Particle Counter

,

Portable Laser Air Particle Counter

Y09-550 Laser Sensor Air Portable Laser Particle Counter 50LPM

Y09-550 Laser Sensor Air Portable Laser Particle Counter is a device for measuring particle dust with a sampling flow rate of 50LPM. As a particle count, real-time display of the particle data of 0.3, 0.5, 1.0, 3.0, 5.0, 10μm 6 channels, can choose to switch to display the actual particle number or particle concentration value (1m3).



Specification of particle counter

Model

Y09-5100

80 Watt Air Portable Laser Particle Counter 50LPM Y09-550 0

Y09-550

80 Watt Air Portable Laser Particle Counter 50LPM Y09-550 1

Y09-35080 Watt Air Portable Laser Particle Counter 50LPM Y09-550 2
Outside Dim 268×295×192(mm3)
Display 7inch Color Screen
Weight 8.4kg
Max.Consumption 80W
Power Source DC16.8V
Size Channels 0.5, 1, 3, 5, 10, 25μm 0.3,0.5,1,3,5,10μm
Flow Rate 100L/min 50L/min
Sample Time 6~999999s(Selectable)
Zero Count ≤10min
Hold Time 0-9999s
Delay Time 5-999s
Printer Built-in Thermal Printer
Data Storage 20000 Samples/300Samples of UCL(With PC Software)
Maximum Rated Particle Concentration 35000 particles/L
Operating Time 3 hours 5 hours
Environmental Temperature:10~35; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa
Material SUS316L Stainless Steel
Class ISO14644-1:2015/GMP:2015









80 Watt Air Portable Laser Particle Counter 50LPM Y09-550 3

Related products

Model

Y09-110

Y09-310NW

Y09-3016HW






80 Watt Air Portable Laser Particle Counter 50LPM Y09-550 4





80 Watt Air Portable Laser Particle Counter 50LPM Y09-550 5



80 Watt Air Portable Laser Particle Counter 50LPM Y09-550 6



Size Channels 0.1,0.2,0.3,0.5,0.7,1.0μm 0.3,0.5,1,3,5,10μm
Flow Rate 28.3L/min 2.83L/min
Display 7inch Color Screen 4.3inch Color Screen





80 Watt Air Portable Laser Particle Counter 50LPM Y09-550 7
