USB Interface Airborne Particle Counter For Cleanroom Y09-310X

Certification
China Suzhou Sujing Automation Equipment corporation limited certification
China Suzhou Sujing Automation Equipment corporation limited certification
I'm Online Chat Now

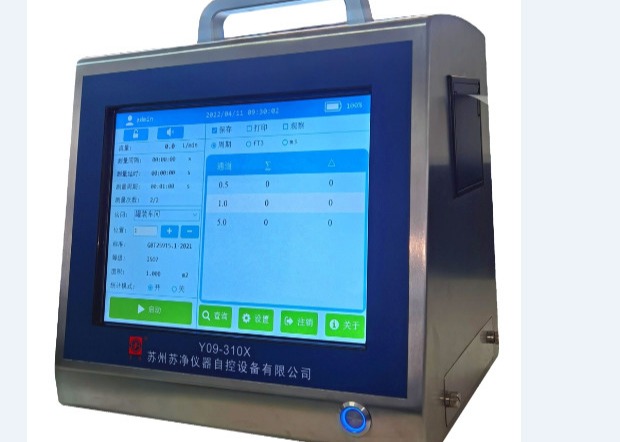

USB Interface Airborne Particle Counter For Cleanroom Y09-310X

USB Interface Airborne Particle Counter For Cleanroom Y09-310X
USB Interface Airborne Particle Counter For Cleanroom Y09-310X

Large Image :  USB Interface Airborne Particle Counter For Cleanroom Y09-310X

Product Details:
Place of Origin: China
Brand Name: SUJING
Model Number: Y09-310X
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: B330 Portable Particle Counter offers best-in-class features and versatility. The Model B330 provides a 1.0 CFM (28.3 L/min) flow with 0.1 μm sensitivity. Compatible with accurate ventilation probes that measure air velocity/temperature/RH, this product pr
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Airborne Particle Counter For Cleanroom Y09-310X Size Channels: 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate: 28.3L/min (Imported Pump) Operating Time: 6 Hours
Zero Count: ≤10min Interface: USB
High Light:

Air Particle Counter 28.3L/min

,

Cleanroom Airborne Particle Counter

,

USB Interface Airborne Particle Counter

airborne particle counter For Cleanroom Y09-310X



Y09-310X laser dust particle counter is an upgraded product of Y09-310NW.  Portable Particle Counter offers best-in-class features and versatility. The Model Y09-310X provides a 1.0 CFM (28.3 L/min) flow with 0.1 μm sensitivity. Compatible with accurate ventilation probes that measure air velocity/temperature/RH, this product provides you with a complete solution for your certification needs. Particle count data can be conveniently viewed on screen, downloaded using Software or printed directly to the integrated printer. This particle counter can generate pass/fail reports for ISO 14644-1, EU GMP Annex 1.



Standards compliant

  • GB/T 25915.1-2021 (clean room and related controlled environment)
  • GB/T 29024.4-2017/ISO 20501-4:2007(Particle Size Analysis Optical Measurement of Single Particles)
  • ISO 14644-1:2015 (Cleanrooms and Associated Controlled Environments)
  • GB/T 16292-2010 (Test method for suspended particles in clean room (area) of pharmaceutical industry)
  • 21 CFR part 11





Features

  1. Simple, lightweight, easy to operate, easy to clean

• 10'' high resolution LCD touch screen for easy gloved operation.

• Stainless steel housing, airtight design, direct cleaning.



  1. Simplified, secure data management for easy auditing

• Traceability: Microsoft Active Directory usernames and passwords for multiple levels of control,Create a unique electronic signature for the user.

• Clear records: Export clear, secure PDF electronic records of measurement results.

• Save Write Synchronization: Create secure PDF electronic records within the counter - no data

Manual transcription or scanning of paper reports.

• Raw Data Consistency: Create raw electronic records directly within the counter.





Outside Dim 213mm*292mm*276mm (L*W*H)
Weight 7.2Kg
Max. Consumption 60W
Power Source DC16.8V built-in Lithium Battery; AC 220V ± 10%
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Calculation 95% UCL calculation, can display and print particle concentration (particles / cubic meter, particles /cubic feet)
Flow Rate 28.3L/min (Imported Pump)
Sample Time 1s---999999s (Selectable)
Data Storage 100000Samples
Maximum Rated Particle Concentration 35000 particles/L
Operating Time 6 hours
Environmental Temperature Temperature :10 -35; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa
Zero Count ≤10min
Interface USB






Application



Cleanroom Monitoring

• Facility Certification

• Facility Monitoring

• Filter Testing

• Cleanroom Laundries

• Cleanroom Packing

• Aerospace

• Hospital Surgical Rooms

• Pharmaceutical

• Paint Spray Booths

•Food Processing Area

•Hard Disk Drive Manufacturing





Company Information
USB Interface Airborne Particle Counter For Cleanroom Y09-310X 1
Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.

Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)

Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.




Sujing instrument is an ISO 9001:2015 Registered Company



Our Services



1. Research

USB Interface Airborne Particle Counter For Cleanroom Y09-310X 2


2. Material

USB Interface Airborne Particle Counter For Cleanroom Y09-310X 3

3. Produce

USB Interface Airborne Particle Counter For Cleanroom Y09-310X 4

4. Calibration

USB Interface Airborne Particle Counter For Cleanroom Y09-310X 5



5. Testing

USB Interface Airborne Particle Counter For Cleanroom Y09-310X 6



USB Interface Airborne Particle Counter For Cleanroom Y09-310X 7
