| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-5100 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Portable Particle Counter 100LPM For Cleanroom Monitoring | Flow Rate: | 100LPM |
|---|---|---|---|
| Warranty Time: | 1 Year | Weight: | 8.4kg |
| Operating Time: | More Than 5.5 Hours | Maximum Rated Particle Concentration: | 35000 Particles/L |
| High Light: | 100LPM Portable Particle Counter,7'' Screen Portable Particle Counter,100LPM Portable Air Particle Counter |
||

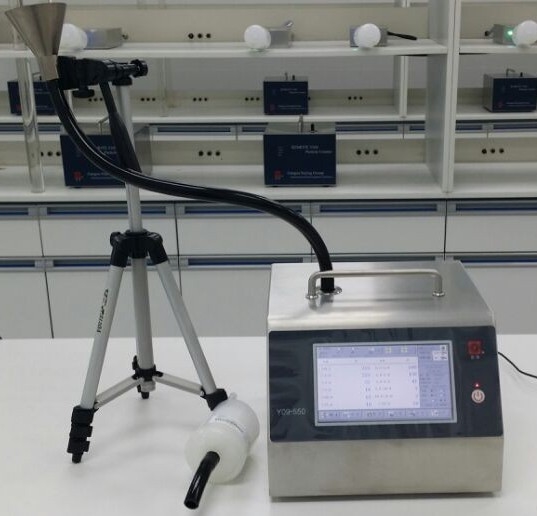

Portable Particle Counter 100LPM For Cleanroom Monitoring
Airborne Particle Counters, including portables, handhelds, and remotes, are designed to meet the rigid requirements for clean room applications.Airborne Particle Counters comply with the stringent requirements set forth in ISO 21501-4.The recognized standard for particle measurements. Backed with long-standing reputation for high quality and accuracy, Airborne Particle Counters provide the best measurement and data to help keep your processes in control.
Specification of particle counter
| Model |
Y09-5100
|
Y09-550
|
Y09-350 |
| Outside Dim | 268×295×192(mm3) | ||
| Display | 7inch Color Screen | ||
| Weight | 8.4kg | ||
| Max.Consumption | 80W | ||
| Power Source | DC16.8V | ||
| Size Channels | 0.5, 1, 3, 5, 10, 25μm | 0.3,0.5,1,3,5,10μm | |
| Flow Rate | 100L/min | 50L/min | |
| Sample Time | 6~999999s(Selectable) | ||
| Zero Count | ≤10min | ||
| Hold Time | 0-9999s | ||
| Delay Time | 5-999s | ||
| Printer | Built-in Thermal Printer | ||
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) | ||
| Maximum Rated Particle Concentration | 35000 particles/L | ||
| Operating Time | 3 hours | 5 hours | |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa | ||
| Material | SUS316L Stainless Steel | ||
| Class | ISO14644-1:2015/GMP:2015 | ||
Related products
|
Model |
Y09-110 |
Y09-310NW |
Y09-3016HW |
|
Picture |
|
|
|
| Size Channels | 0.1,0.2,0.3,0.5,0.7,1.0μm | 0.3,0.5,1,3,5,10μm | |
| Flow Rate | 28.3L/min | 2.83L/min | |
| Display | 7inch Color Screen | 4.3inch Color Screen | |
Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.
Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)
Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.
Sujing instrument is an ISO 9001:2015 Registered Company
1. Research
2.Material
3.Produce
4.Calibration
5.Testing
5.Packing
