| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-5100 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Electronic Particle Counter For Clean Room With Large Flow Rate | Flow Rate: | 100LPM |
|---|---|---|---|
| Warranty Time: | 1 Year | Weight: | 8.4kg |
| Operating Time: | More Than 5.5 Hours | Maximum Rated Particle Concentration: | 35000 Particles/L |
| High Light: | 7'' Color Screen Electronic Particle Counter,100LPM Electronic Particle Counter,SUS316L Electronic Particle Counter |
||

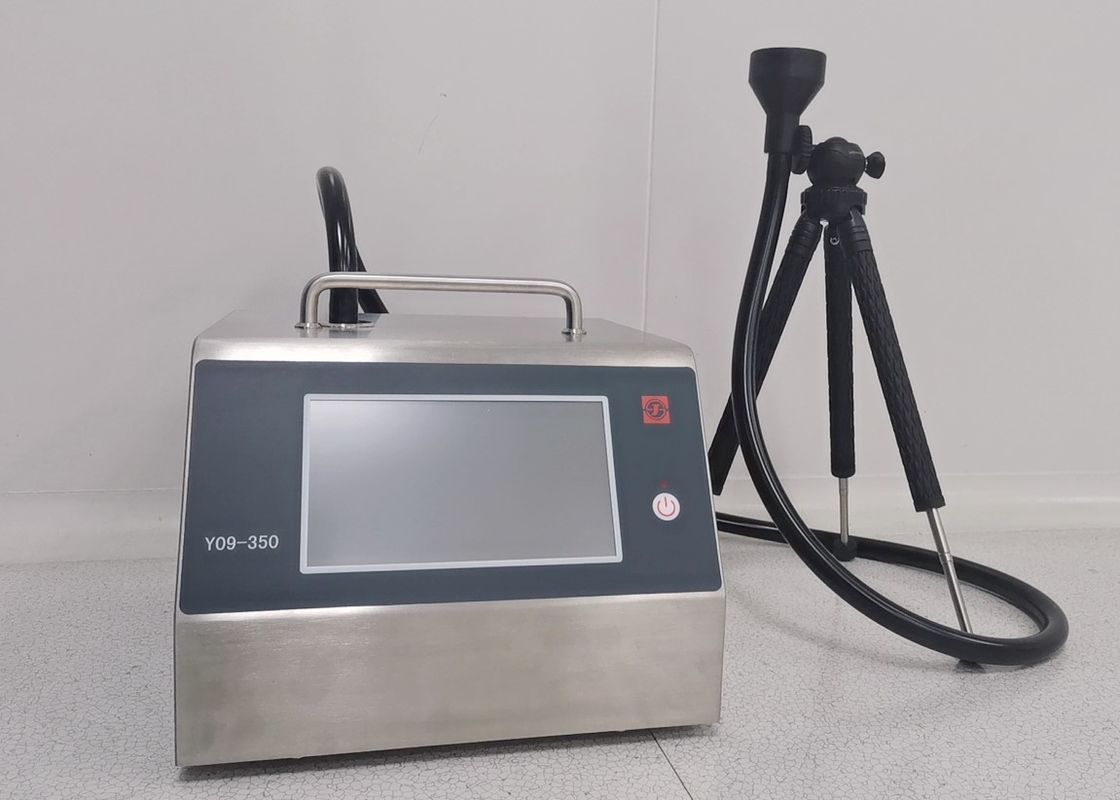

Electronic Particle Counter For Clean Room With Large Flow Rate
The electronic particle counter is our newly develop portable laser dust particles counter which apply semiconductor laser sensor, can be connected to PC data collection system to remote control, so that can directly observe the testing situation, and the testing data can be analysis, processed and saved as Excel document. The counter apply American micro-computer controlling and dealing technology, semi-conductor technology and imported air pump, with the character of multi-function, high precision measure, high speed, portable and easy to operate. The counter one time sampling can test the number of dust particles on different kinds of grain sizes
Specification of particle counter
| Model |
Y09-5100
|
Y09-550
|
Y09-350 |
| Outside Dim | 268×295×192(mm3) | ||
| Display | 7inch Color Screen | ||
| Weight | 8.4kg | ||
| Max.Consumption | 80W | ||
| Power Source | DC16.8V | ||
| Size Channels | 0.5, 1, 3, 5, 10, 25μm | 0.3,0.5,1,3,5,10μm | |
| Flow Rate | 100L/min | 50L/min | |
| Sample Time | 6~999999s(Selectable) | ||
| Zero Count | ≤10min | ||
| Hold Time | 0-9999s | ||
| Delay Time | 5-999s | ||
| Printer | Built-in Thermal Printer | ||
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) | ||
| Maximum Rated Particle Concentration | 35000 particles/L | ||
| Operating Time | 3 hours | 5 hours | |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa | ||
| Material | SUS316L Stainless Steel | ||
| Class | ISO14644-1:2015/GMP:2015 | ||
Related products
|
Model |
Y09-110 |
Y09-310NW |
Y09-3016HW |
|
Picture |
|
|
|
| Size Channels | 0.1,0.2,0.3,0.5,0.7,1.0μm | 0.3,0.5,1,3,5,10μm | |
| Flow Rate | 28.3L/min | 2.83L/min | |
| Display | 7inch Color Screen | 4.3inch Color Screen | |
Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.
Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)
Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.
Sujing instrument is an ISO 9001:2015 Registered Company
1. Research
2.Material
3.Produce
4.Calibration
5.Testing
5.Packing
