| Place of Origin: | JIANGSU |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-310X |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 7work days |
| Supply Ability: | 1000/WEEK |
| Name: | Y09-310X Air Particle Counter | Flow Rate: | 1cfm |
|---|---|---|---|
| Warranty Time: | 1 Year | Weight: | 4.2kg |
| Size Channels: | 0.3, 0.5, 1, 3, 5, 10 μm | Work Time: | 6 Hours |
| High Light: | Laser Diode Electronic Air Particle Counter,Portable Laser Particle Counter,Air Particle Counter 1cfm |
||

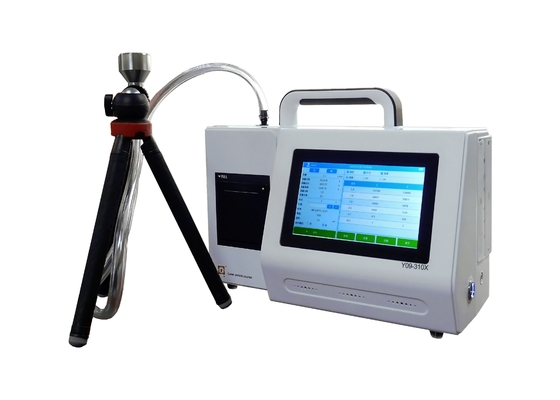

Y09-310X Air Particle Counter
The electronic particle counter is our newly develop portable laser dust particles counter which apply semiconductor laser sensor, can be connected to PC data collection system to remote control, so that can directly observe the testing situation, and the testing data can be analysis, processed and saved as Excel document. The counter apply American micro-computer controlling and dealing technology, semi-conductor technology and imported air pump, with the character of multi-function, high precision measure, high speed, portable and easy to operate. The counter one time sampling can test the number of dust particles on different kinds of grain sizes
Y09-310X Particle Counter (updated from Y09-310NW) is used to detect the size and quantity of particles in the air per unit volume of the clean environments. It can quickly check or validate ISO Class 5-9 clean rooms and controlled environments. With LCD display, the instrument uses laser diode as the light source. It has many features, such as slim design, light weight, high precision, simple operation, micro computer control, and can store and print sampling results. It is widely used in the electronics, optics, chemistry, food and beverage, pharmacy and sanitation, biology, precision machinery, aerospace, and other fields.
The specification of Y09-310X air particle counter
| Outside Dim | 373*169.3*272mm3 |
| Weight | 4.2kg |
| Max Power | 60W |
| Power Source | DC16.8V |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Sample Time | 1s-99h |
| Flow Rate | 28.3L/Min |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Interface | USB |
| Zero Court | <=10min |
| Operating Time | 6 hours |
| Data Storage | 100000 Samples (Wifi) |
| Y09-310X | Y09-310NW | |
| Pictures | |
|
| Standard | GBT25915.1-2021 | --- |
| Data Storage | 1000000samples | 20000samples/300 samplesUCL |
| Audit Trail | Query ,Export | Export |
| Three-Level Permissions | Role permissions can be assigned at the administrator level | Permissions are fixed |
| Numbers of user | 1000 | 50 |
| User management | Assign user,Modify user,Disable User, Enable user | Assign user,Modify user,Delete user |
| User name |
Uppercase and lowercase letters ,Digit, |
4 digits |
| Login password | Letter,Digit,Special characters | 8 digits |
| Handwritten signature | Users can add, modify, and delete handwritten signatures | --- |
| Numbers of room | 2000 | 300 |
| Name of room |
Uppercase and lowercase letters ,Digit, Special characters |
20letters,digits |
| Display screen | Touch color screen | Resistive touch color screen |
| Dimension | 373mm*169.3mm*272mm | 268mm*192mm*292mm |
| Weight | 4.2kg | 6.0kg |
