8 Channel Oil Particle Counter For Testing Contamination Particles In Oil
|
8 Channel Oil Particle Counter For Testing Contamination Particles In Oil
| Brand Name: | SUJING |
| Model Number: | L02B |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500units/month |
Detail Information
Place of Origin:
CHINA
Name:
Oil Particle Counter For Testing Contamination Particles In Oil
Size Range:
1-100*μm (ISO4402)；4-70μm (C) (ISO11171)
Detection Channel:
8
Maximum Detection Concentration:
12000 Particle/ml
Sampling Speed:
20 Ml/min
Detection Viscosity:
<200 CSt
Packaging Details:
WOODEN CASE
Delivery Time:
5-8 workdays
Supply Ability:
500units/month
Highlight:
20ml/min Oil Particle Counter
,Oil Particle Counter 8 Channels
,Oil Liquid Particle Counter
Product Description

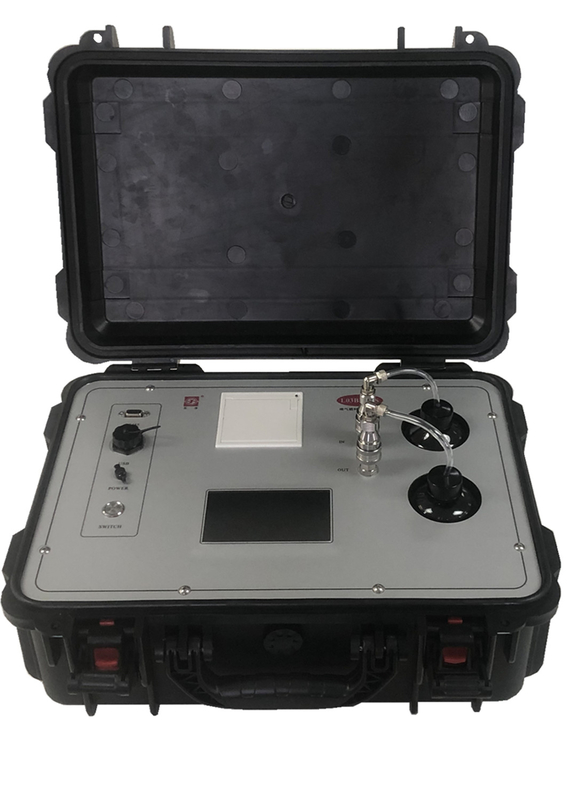

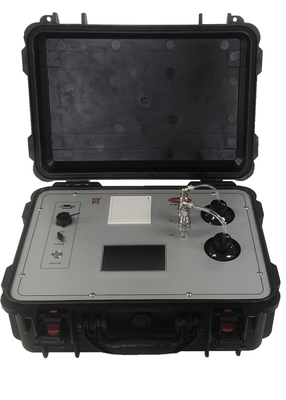

Oil Particle Counter for Testing Contamination Particles in Oil
Oil particle Counter is used to detect the size and number of solid particles in liquid. It can be widely applied to aviation, aerospace, electric power,petroleum, chemistry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields. Specifically, it tests pollution level of solid particles in oil fluid such as hyd raulic oil, lubricating oil, transformer oil (insulating oil),steam turbine oil (turbine oil), gear oil, engine oil, aviation kerosene and water-based hydraulic oil and detects insoluble particles in organic liquid and poly mer solution.
Features
- Precision plunger pump, strictly control the sampling volume accuracy
- Support both offline and on-line detection
- Suitable for low and high viscosity oil
- Support multiple testing standards, including ISO 4406 and NAS 1638
- 8 detection channels
- ISO 11171: 2010 (GB/T 18854-2015) and ISO 4402: 1991 two calibration standards
- User Customize the setting of detection criteria
- Strong, small, lightweight and easy to carry
Specification
| Size Range | 1-100*μm (ISO4402)；4-70μm (C) (ISO11171) |
| Detection Channel | 8 |
| Maximum Detection Concentration | 12000 particle/ml |
| Sampling Speed | 20 ml/min |
| Sample volume accuracy | ±3% |
| Detection Viscosity | <200 cSt |
| Sample Temperature | ≤70℃ |
| Display | 7 inch LCD color touch screen |
| Data Output | RS232 interface, USB interface, built-in printer |
| Power | AC 220V±10%,50HZ；DC 16.4V |
| Dimension | 410(L)×210(H)×330(W) mm |
| Weight | 13kg |
| Usage Environment | 0-50℃ |
