Y09-5100X 316L Stainless Steel Pro Laser Air Particle Counter In Pharma Factory

Name: Y09-5100X 316L Stainless Steel Pro Laser Air Particle Counter In Pharma Factory
Brand: Suzhou Sujing Automation Equipment corporation limited
SKU: Y09-5100X Pro
Price: 4,000.00 USD
Availability: InStock

Brand Name:	SUJING
Model Number:	Y09-5100X Pro
MOQ:	1UNIT
Price:	Negotiation
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	5000units/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS

Particle Size Channel::

0.5, 1.0, 3.0, 5.0, 10.0, 25.0 (μm)

Sampling Flow Rate::

100 L/min

Alarm:

Built-in Alarm Buzzer

Interface::

USB

Shell Material::

316L Stainless Steel

Printer::

Built-in Thermal Printer

Packaging Details:

Carton

Supply Ability:

5000units/week

Highlight:

Pharma Factory Air Particle Counter

Pro Laser Air Particle Counter

316L Stainless Steel Laser Particle Counter

Product Description

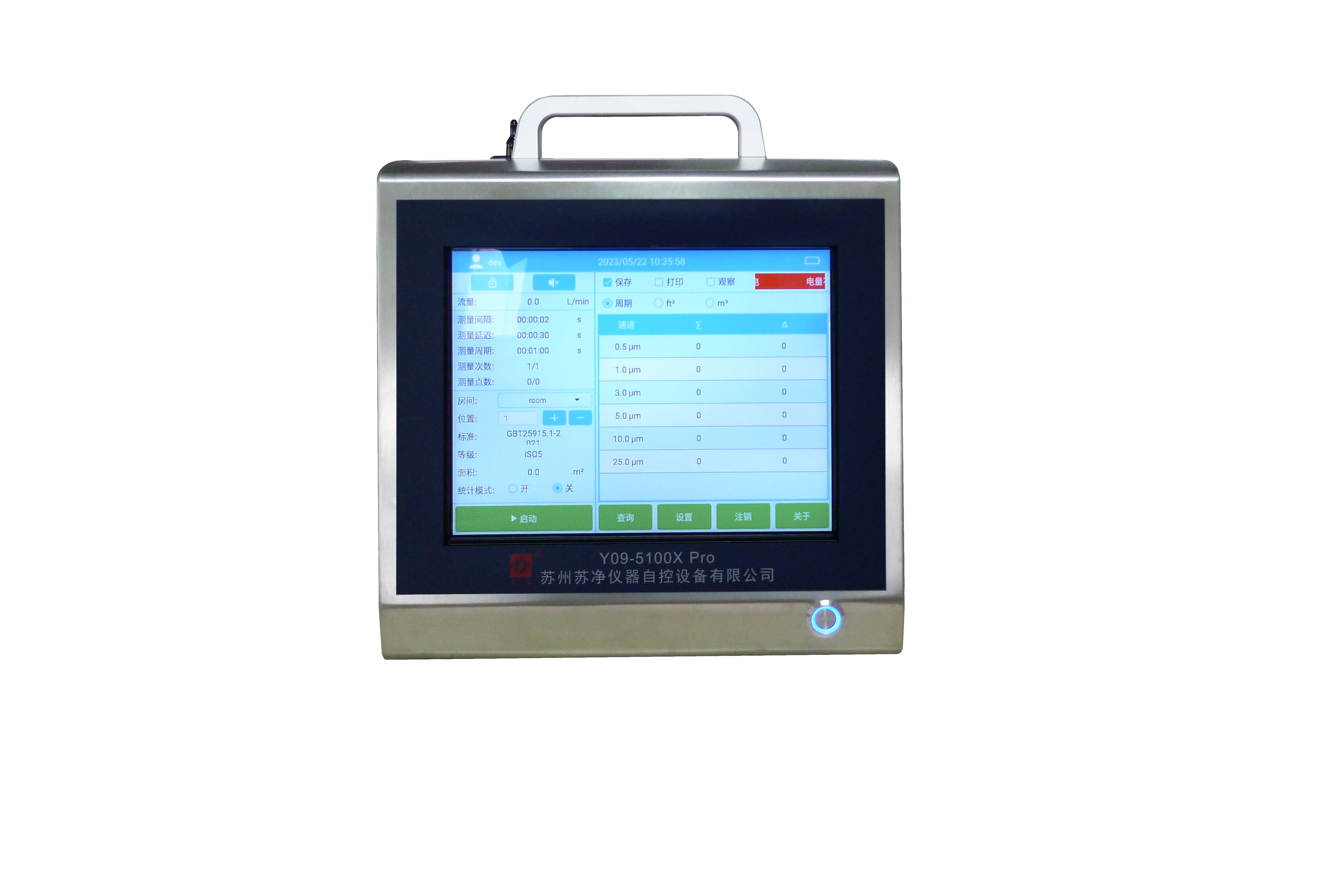

Y09-5100X Pro Laser Air Particle Counter

Y09-5100X 316L Stainless Steel Pro Laser Air Particle Counter In Pharma Factory 0

Y09-5100X Pro uses semiconductor laser light source, touch screen (LCD screen) display. Its advantages include reasonable design structure, high detection accuracy, large flow, short sampling time, simple and clear function operation. The data can be saved directly in USB flash disk, and the sampling results can also be stored and printed by computer control. It has a built-in thermal micro printer, and is very convenient to test environment.

Y09-5100X Pro laser air particle counter is a new generation of particle counter products developed to adapt to the new national policy and new orientation. It is widely used in electronics, optics, chemistry, food, cosmetics, medicine and health, biological products, aerospace, and other fields.

Technical specification

Size:	245 x 292 x 276 mm³
Weight:	7 KG (include battery)
Power Supply:	DC 16.8 V (rechargeable built-in lithium-ion battery)
Particle size channel:	0.5, 1.0, 3.0, 5.0, 10.0, 25.0 (μm)
Sampling period:	1 - 999,999 sec
Sampling flow rate:	100 L/min
Max sampling air concentration:	35,000 particles /L (particle size≥0.5 μm; sampling air must not contain corrosive gases such as acid and alkali)
Alarm:	Built-in alarm buzzer
Ventilation:	Built-in HEPA filter (> 99.997%@0.3 um)
Data storage:	1,000,000 sets of common test data; 10,000 sets of statistical mode operation data
Data security:	Authority management (Authority level can be divided into administrator, technician, operator)
Light source and life span:	Semiconductor laser source >30,000 h
Zero count:	≤10 min
Interface:	USB
No. of rooms:	Unlimited
Name of rooms:	Unlimited (Chinese, letters, numbers, special characters)
Calibration frequency:	Once a year recommended
Shell material:	316L stainless steel
Printer:	Built-in thermal printer
