| Place of Origin: | JIANGSU |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-310NW |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500unit/per month |
| Size Channels: | 0.3, 0.5, 1, 3, 5, 10 μm | Flow Rate: | 28.3L/min (Imported Pump) |
|---|---|---|---|
| Operating Time: | More Than 5.5 Hours | ||
| High Light: | Y09-310NW Laser Particle Counter,1CFM Laser Particle Counter,28.3L/Min Laser Particle Counter |
||

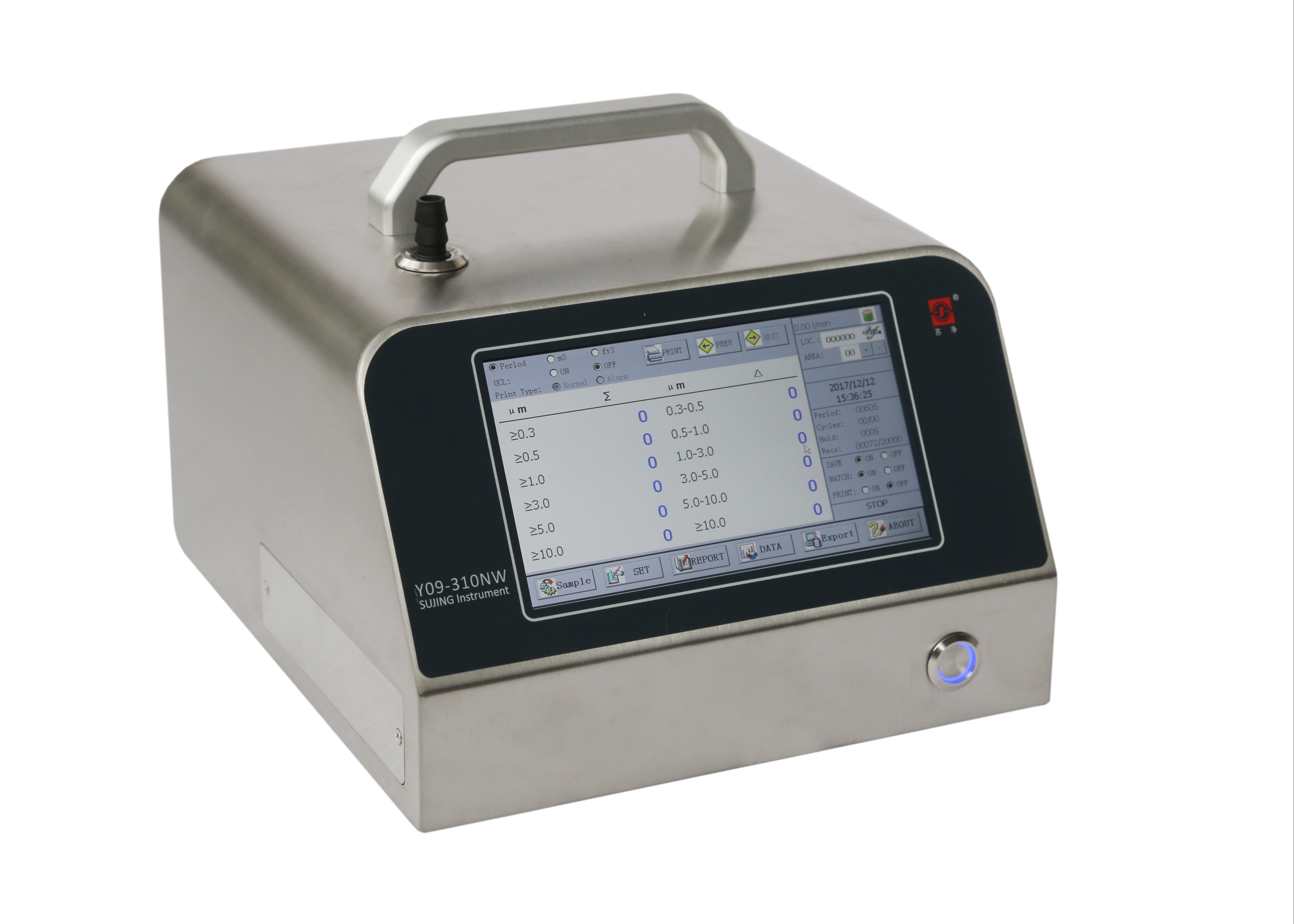

Y09-310NW
1CFM (28.3LPM)- Particle Counter / Airborne Particle Counter China
The Model Y09-310NW Airborne Particle Counter is used to detect the particles in the cleanroom. The instrument uses the laser diode as the light source. With LCD touch screen, it can measure six different size channels simultaneously. The built-in printer can print count results. The counter can store 1000 samples data. Software creates data files for viewing or export to EXCEL sheet to computer. The instrument is widely used in the fields of micro-electronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace and so on.
Features:
1. Sample volume 28.3 LPM (1.0CFM).
2. Simultaneously display of up to six particle sizes
3. 20000-record data storage memory
4. Meet the requirements of ISO14644-1:2015
| Outside Dim | 245*268*160 (mm3); (Wide*Deep*High) |
| Display | 7 inch touch screen |
| Weight | 3.5Kg |
| Max. Consumption | 80W |
| Power Source | DC16.8V built-in Lithium Battery; AC 220V ± 10% |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Calculation | 95% UCL calculation, can display and print particle concentration (particles / cubic meter, particles /cubic feet) |
| Flow Rate | 28.3L/min (Imported Pump) |
| Sample Time | 6s---999999s (Selectable) |
| Cycles | 0-99 |
| Hold Time | 0-9999s |
| Delay Time | 5-999s |
| Zero Court | <=10min |
| Location | 1-99 |
| Alarm | ISO Class |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000Samples /300 Samples of UCL (With PC Software) |
| Light Source | Laser Diode (30,000 hours Mean Time Between Failures) |
| Counting efficiency | 50% @ 0.3μm and 100% for particles >0.45μm (ISO21501) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Environmental Temperature | Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa |
Application
• Cleanroom Monitoring
• Facility Certification
• Facility Monitoring
• Filter Testing
• Cleanroom Laundries
• Cleanroom Packing
• Aerospace
• Hospital Surgical Rooms
• Pharmaceutical
• Paint Spray Booths
•Food Processing Area
•Hard Disk Drive Manufacturing
