| Place of Origin: | JIANGSU |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Remote |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Particle Counter 24hour Testing For Cleanroom Monitoring System | Detect Class: | ISO Class 5-9 (EU GMP Grade A-D) |
|---|---|---|---|
| Standard: | GMP, ISO14644, FDA, JJF1190-2008 | Two Size Channels: | 0.5 & 5.0 Micron Sensitivity |
| Flow Rate: | 2.83L/min, Or 28.3L/min | Warranty Time: | 1 Year |
| High Light: | 28.3L/Min particle monitoring system,GMP particle monitoring system,Cleanroom particle monitoring system |
||
Particle Counter 24hour Testing For Cleanroom Monitoring System
Remote particle counter is used to measure the size of 0.5um and 5um dust particles per unit volume of air of aseptic room in the production area, and can directly detect class of ISO Class 5-9 (EU GMP Grade A-D) clean environments. The instrument is in line with the new version of GMP, ISO14644, FDA, JJF1190-2008 standard. It uses laser diode light source, with built-in pump or centralized vacuum system to achieve continuous monitoring. Signal transmission distance up to 1.2km, each size range can be set the maximum number of particles, and will alarm when exceeding limit.
The online particle monitoring system provides an automated means to monitor and gather airborne particle count and other parameters level in controlled environments. The system allows users to perform a variety of functions from PC including the alteration of alarms information and viewing of particle count concentrations.
Features and Benefits
1. Compact laser particle sensor with stainless enclosure
2. Two size channels 0.5 & 5.0 micron sensitivity
3. Flow Rate: 2.83L/min, or 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors
REMOTE 3014
2.83LPM (0.1CFM) built-in pump
| Outside Dim | 149*118*56 mm³(Wide*Deep*High) |
| Weight | 0.8kg |
| Max. Consumption | 3.5W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 2.83L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |

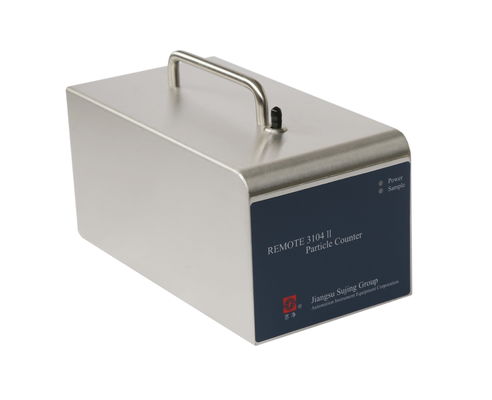

REMOTE 3104
28.3LPM (1.0CFM) built-in pump
| Outside Dim | 275*450*175 mm³(Wide*Deep*High) |
| Weight | 4kg |
| Max. Consumption | 40W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
REMOTE3102
28.3LPM (1.0CFM)
| Outside Dim | 100*45*60 mm³(Wide*Deep*High) |
| Power Source | DC9V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environment | Temperature:10℃-40℃; Humidity: 20%-90%RH; Atmosphere Pressure:86-106Kpa |
| External Vacuum | 60Kpa |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
