5.0 Micron Sensitivity Particle Counter Cleanroom Monitoring System ISO14644

Name: 5.0 Micron Sensitivity Particle Counter Cleanroom Monitoring System ISO14644
Brand: Suzhou Sujing Automation Equipment corporation limited
SKU: Remote
Price: 4,000.00 USD
Availability: InStock

Brand Name:	SUJING
Model Number:	Remote
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	800/per month

Detail Information

Product Description

Detail Information

Place of Origin:

JIANGSU

Name:

Particle Counter 24hour Testing For Cleanroom Monitoring System

Detect Class:

ISO Class 5-9 (EU GMP Grade A-D)

Standard:

GMP, ISO14644, FDA, JJF1190-2008

Two Size Channels:

0.5 & 5.0 Micron Sensitivity

Flow Rate:

2.83L/min, Or 28.3L/min

Warranty Time:

1 Year

Packaging Details:

Carton

Supply Ability:

800/per month

Highlight:

128 sensors Cleanroom Monitoring System

ISO14644 Cleanroom Monitoring System

5.0 micron sensitivity particle monitoring system

Product Description

Particle Counter 24hour Testing For Cleanroom Monitoring System

Our Remote Particle Counters are the most feature-advanced remote particle counters available.

Integration is easy into a building automation and cleanroom management system via Ethernet or (optional) Wireless.

Their small size, flexible power options and wireless capabilities allow installation where space is limited. Worry-free monitoring with best-in-class data buffering reduces risk of data loss during network outages.

Features and Benefits

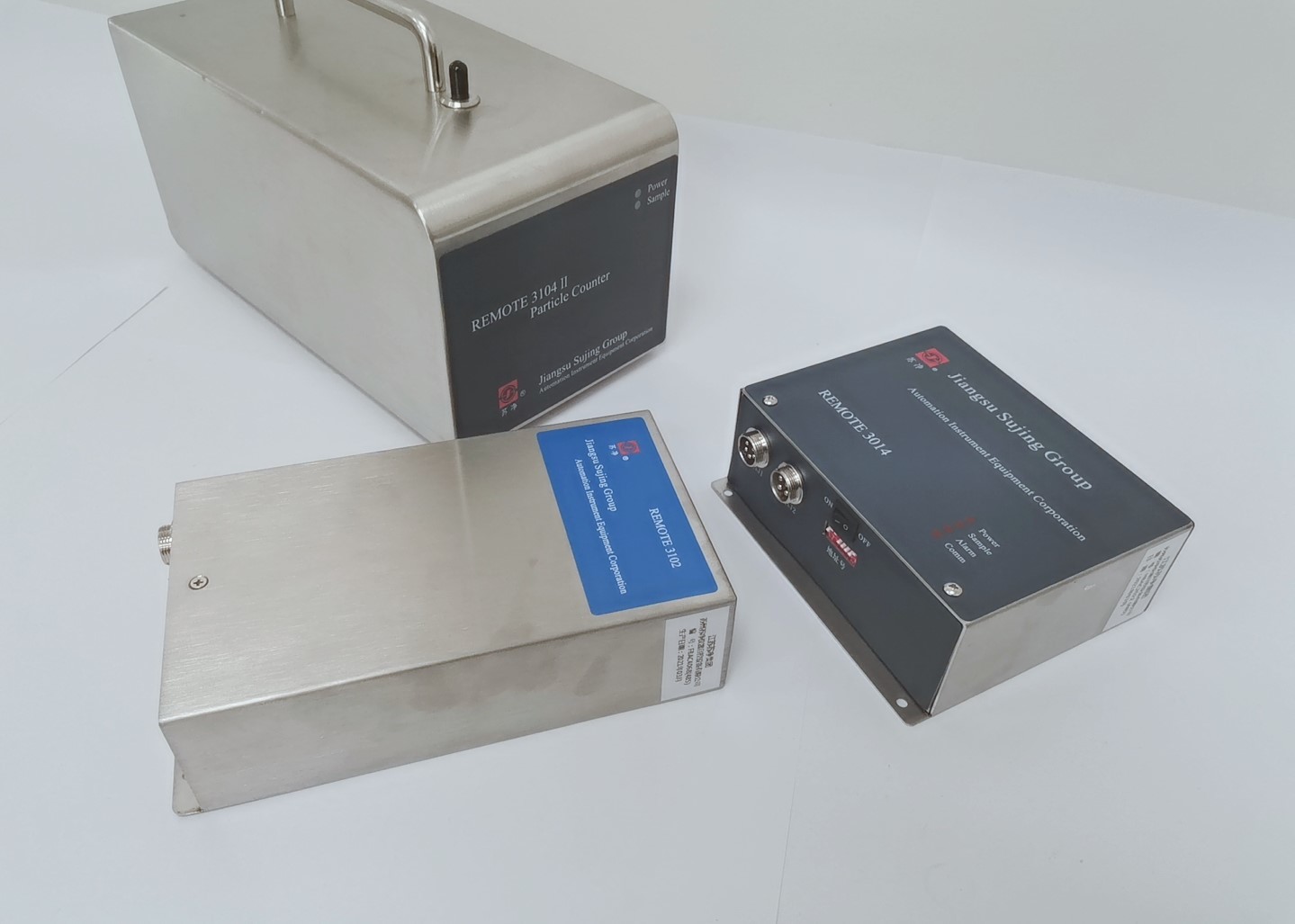

1. Compact laser particle sensor with stainless enclosure

2. Two size channels 0.5 & 5.0 micron sensitivity

3. Flow Rate: 2.83L/min, or 28.3L/min

4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)

5. Multi-function, user-friendly monitoring software

6. One PC system controls up to 128 sensors

Product Description

REMOTE 3014

2.83LPM (0.1CFM) built-in pump

5.0 Micron Sensitivity Particle Counter Cleanroom Monitoring System ISO14644 0

Outside Dim	14911856 mm³(WideDeepHigh)
Weight	0.8kg
Max. Consumption	3.5W
Power Source	DC24V
Size Channels	0.5, 5μm
Flow Rate	2.83L/min
Environmental	Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa
Cycles	Selectable(1s-24h)
Zero Court	<=10min
Data Output	RS485(modbus) or 4-20mA

REMOTE 3104

28.3LPM (1.0CFM) built-in pump

5.0 Micron Sensitivity Particle Counter Cleanroom Monitoring System ISO14644 1

Outside Dim	275450175 mm³(WideDeepHigh)
Weight	4kg
Max. Consumption	40W
Power Source	DC24V
Size Channels	0.5, 5μm
Flow Rate	28.3L/min
Environmental	Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa
Cycles	Selectable(1s-24h)
Zero Court	<=10min
Data Output	RS485(modbus) or 4-20mA

REMOTE3102

28.3LPM (1.0CFM)

5.0 Micron Sensitivity Particle Counter Cleanroom Monitoring System ISO14644 2

Outside Dim	1004560 mm³(WideDeepHigh)
Power Source	DC9V
Size Channels	0.5, 5μm
Flow Rate	28.3L/min
Environment	Temperature:10℃-40℃; Humidity: 20%-90%RH; Atmosphere Pressure:86-106Kpa
External Vacuum	60Kpa
Zero Court	<=10min
Data Output	RS485(modbus) or 4-20mA

FKC-III Microbial Air Sampler

Sampling flow rate	100L/min or 28.3L/min
Sample volume	10-9999L
Sampling delay	1-60 seconds
Collection methods	Remote control or manually
Battery	Lithium Battery 16.8V 8.8Ah, can work 10 hours
Weight	6kg
Plate size	90*15mm
Display window	High brightness LCD display
Operating environment	Temperature: 0 - 50 degree celsius, humidity: 10-90%

5.0 Micron Sensitivity Particle Counter Cleanroom Monitoring System ISO14644 4
