| Place of Origin: | JIANGSU |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Remote |
| Name: | Pharmaceutical Remote Online Particle Cleanroom Monitoring System | Detecting Gas: | Remote Airborne Particle Counter |
|---|---|---|---|
| Sensitivity: | 0.3um | Flow Rate: | 28.3L/min |
| Monitoring Range:: | ISO5-ISO9 | Warranty Time: | 1 Year |
| High Light: | 28.3L/min environment monitoring system,0.3um environment monitoring system,GMP Particle environment monitoring system |
||

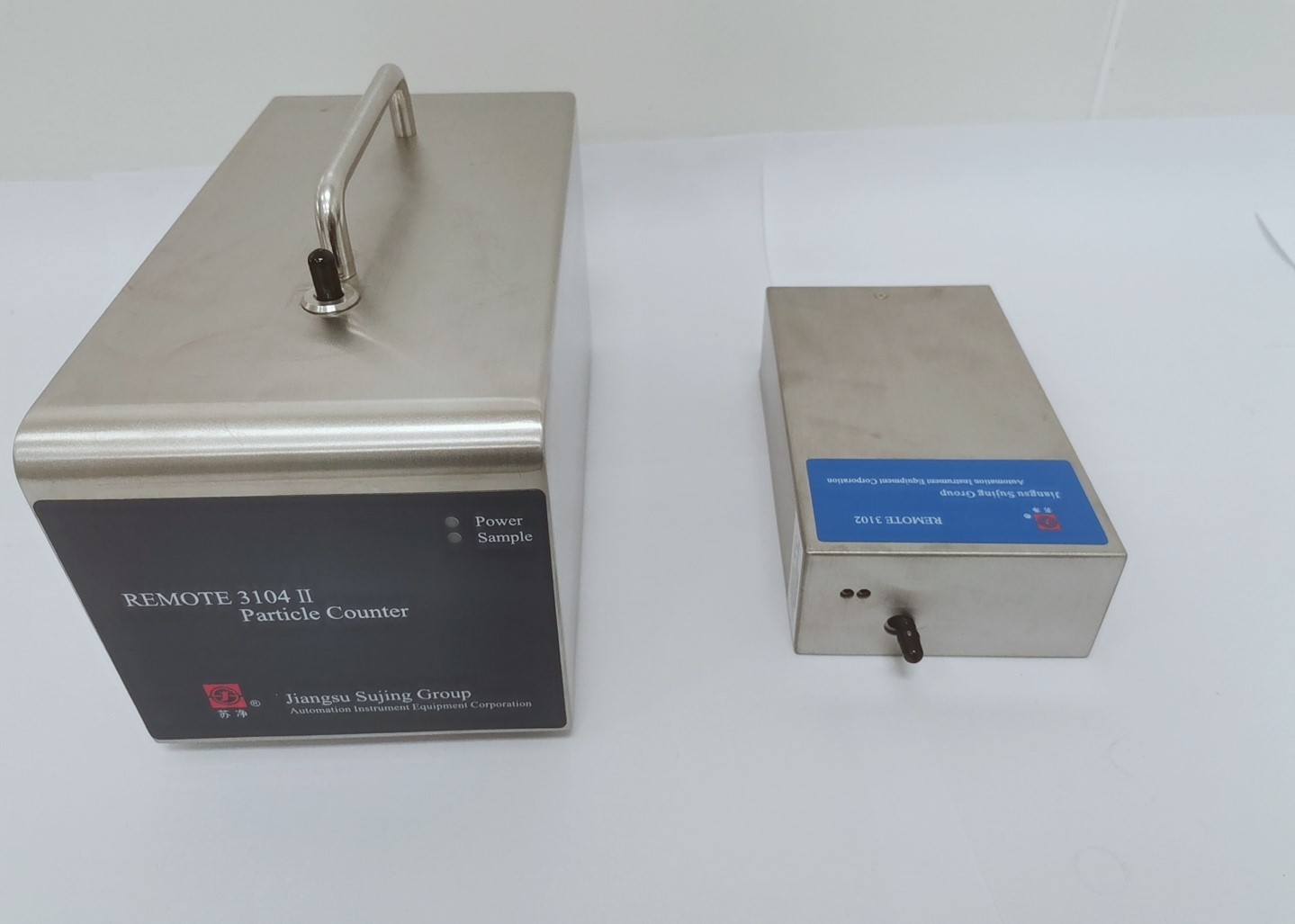

Pharmaceutical Remote Online Particle Cleanroom Monitoring System
Remote particle counter is used to measure the size of 0.5um and 5um dust particles per unit volume of air of aseptic room in the production area, and can directly detect class of ISO Class 5-9 (EU GMP Grade A-D) clean environments. The instrument is in line with the new version of GMP, ISO14644, FDA, JJF1190-2008 standard. It uses laser diode light source, with built-in pump or centralized vacuum system to achieve continuous monitoring. Signal transmission distance up to 1.2km, each size range can be set the maximum number of particles, and will alarm when exceeding limit.
Features and Benefits
1. Compact laser particle sensor with stainless enclosure
2. Two size channels 0.5 & 5.0 micron sensitivity
3. Flow Rate: 2.83L/min, or 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors
| Outside Dim | 275*450*175 mm³(Wide*Deep*High) |
| Weight | 4kg |
| Max. Consumption | 40W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
