Pharma Factory 24hours Air Quality Monitoring System 28.3L/Min

Certification
China Suzhou Sujing Automation Equipment corporation limited certification
China Suzhou Sujing Automation Equipment corporation limited certification
I'm Online Chat Now

Pharma Factory 24hours Air Quality Monitoring System 28.3L/Min

Pharma Factory 24hours Air Quality Monitoring System 28.3L/Min
Pharma Factory 24hours Air Quality Monitoring System 28.3L/Min

Large Image :  Pharma Factory 24hours Air Quality Monitoring System 28.3L/Min

Product Details:
Place of Origin: JIANGSU
Brand Name: SUJING
Model Number: Remote
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Air Quality 24hours Cleanroom Monitoring System For Pharma Factory Detect Class: ISO Class 5-9 (EU GMP Grade A-D)
Standard: GMP, ISO14644, FDA, JJF1190-2008 Two Size Channels: 0.5 & 5.0 Micron Sensitivity
Flow Rate: 2.83L/min, Or 28.3L/min Warranty Time: 1 Year
High Light:

REMOTE 3014 air quality monitoring system

,

28.3L/Min Air Quality Monitoring System

,

5.0 micron sensitivity Cleanroom Monitoring System

Air Quality 24hours Cleanroom Monitoring System For Pharma Factory



The robust and flexible system architecture ensures cleanroom environmental monitoring data is protected and available whenever there is a need for product release and reporting. Solutions for all cleanroom sizes and classes to fit most budgets.



1. Compact laser particle sensor with stainless enclosure

2. Two size channels 0.5 & 5.0 micron sensitivity

3. Flow Rate: 2.83L/min, or 28.3L/min

4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)

5. Multi-function, user-friendly monitoring software

6. One PC system controls up to 128 sensors



Product Description

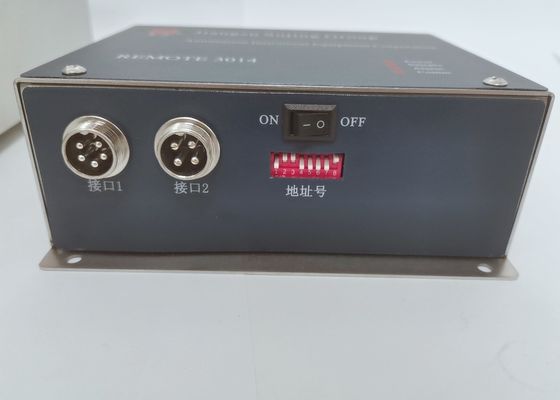

REMOTE 3014

2.83LPM (0.1CFM) built-in pump



Pharma Factory 24hours Air Quality Monitoring System 28.3L/Min 0



Outside Dim 149*118*56 mm³(Wide*Deep*High)
Weight 0.8kg
Max. Consumption 3.5W
Power Source DC24V
Size Channels 0.5, 5μm
Flow Rate 2.83L/min
Environmental Temperature:10-40; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa
Cycles Selectable(1s-24h)
Zero Court <=10min
Data Output RS485(modbus) or 4-20mA







REMOTE 3104

28.3LPM (1.0CFM) built-in pump



Pharma Factory 24hours Air Quality Monitoring System 28.3L/Min 1



Outside Dim 275*450*175 mm³(Wide*Deep*High)
Weight 4kg
Max. Consumption 40W
Power Source DC24V
Size Channels 0.5, 5μm
Flow Rate 28.3L/min
Environmental Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa
Cycles Selectable(1s-24h)
Zero Court <=10min
Data Output RS485(modbus) or 4-20mA





REMOTE3102

28.3LPM (1.0CFM)

Pharma Factory 24hours Air Quality Monitoring System 28.3L/Min 2





Outside Dim 100*45*60 mm³(Wide*Deep*High)
Power Source DC9V
Size Channels 0.5, 5μm
Flow Rate 28.3L/min
Environment Temperature:10℃-40℃; Humidity: 20%-90%RH; Atmosphere Pressure:86-106Kpa
External Vacuum 60Kpa
Zero Court <=10min
Data Output RS485(modbus) or 4-20mA



FKC-III Microbial Air Sampler



Pharma Factory 24hours Air Quality Monitoring System 28.3L/Min 3

Sampling flow rate 100L/min or 28.3L/min
Sample volume 10-9999L
Sampling delay 1-60 seconds
Collection methods Remote control or manually
Battery Lithium Battery 16.8V 8.8Ah, can work 10 hours
Weight 6kg
Plate size 90*15mm
Display window High brightness LCD display
Operating environment Temperature: 0 - 50 degree celsius, humidity: 10-90%





Pharma Factory 24hours Air Quality Monitoring System 28.3L/Min 4
