| Place of Origin: | JIANGSU |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Remote |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T, |
| Supply Ability: | 800/per month |
| Name: | Pharmaceutical Remote Online Particle Cleanroom Monitoring System | Detecting Gas: | Remote Airborne Particle Counter |
|---|---|---|---|
| Sensitivity: | 0.5um | External Vacuum: | 60Kpa |
| Monitoring Range:: | ISO5-ISO9 | Warranty Time: | 1 Year |
| High Light: | Remote 3102 Cleanroom Monitoring System,DC9V Cleanroom Monitoring System,60Kpa Cleanroom Monitoring System |
||

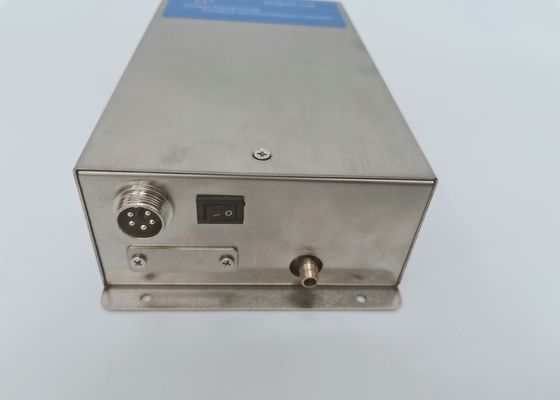

Remote 3102 Remote Particle Counter Cleanroom Monitoring System
Our Remote particle counter is used to install one or more monitoring points according to the actual situation on site, and the measured datas will be directly displayed on the display screen of each monitoring point.And Remote Particle Counter meets the requirements of GMP and ISO21501-4.
If an abnormality occurs during real-time monitoring, the monitoring points can be quickly notified, which makes remote monitoring or monitoring in the process restricted area more convenient.In addition, the Remote Particle Counter contains multiple models, customers can choose the models according to their actual needs.
Features and Benefits of Cleanroom Monitoring System
1. Compact laser particle sensor with stainless enclosure
2. Two size channels 0.5 & 5.0 micron sensitivity
3. Flow Rate: 2.83L/min, or 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors
The specification of Remote 3102 remote particle counter
| Outside Dim | 100*45*60 mm³(Wide*Deep*High) |
| Power Source | DC9V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environment | Temperature:10℃-40℃; Humidity: 20%-90%RH; Atmosphere Pressure:86-106Kpa |
| External Vacuum | 60Kpa |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
