| Place of Origin: | JIANGSU |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Remote |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Particle Counter 24hour Testing For Cleanroom Monitoring System | Detect Class: | ISO Class 5-9 (EU GMP Grade A-D) |
|---|---|---|---|
| Standard: | GMP, ISO14644, FDA, JJF1190-2008 | Two Size Channels: | 0.5 & 5.0 Micron Sensitivity |
| Flow Rate: | 2.83L/min, Or 28.3L/min | Warranty Time: | 1 Year |
| High Light: | 1CFM Facility Monitoring System,2.83L/min Facility Monitoring System,GMP Cleanroom Facility Monitoring System |
||
Cleanroom Facility Monitoring System 1CFM Pharmaceutical Factory
These units provide immediate results that allow you to proactively monitor your environment. It's widely used in Pharmaceutical Industry (pharmaceutical factories, drug testing, hospital operating rooms, etc);
Electronic Industry (semiconductor factory, precision machinery production and processing, etc);
Food Hygiene Industry (dairy products, plastic meat food, seasoning food, agricultural products, etc);
Filter Manufacturers, inspection filter quality and efficiency,etc;
Optical, Aerospace and other areas of precision processing, precision testing required Clean Room (area), and other testing needs.
Features and Benefits
1. Compact laser particle sensor with stainless enclosure
2. Two size channels 0.5 & 5.0 micron sensitivity
3. Flow Rate: 2.83L/min, or 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors
REMOTE 3014
2.83LPM (0.1CFM) built-in pump
| Outside Dim | 149*118*56 mm³(Wide*Deep*High) |
| Weight | 0.8kg |
| Max. Consumption | 3.5W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 2.83L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |

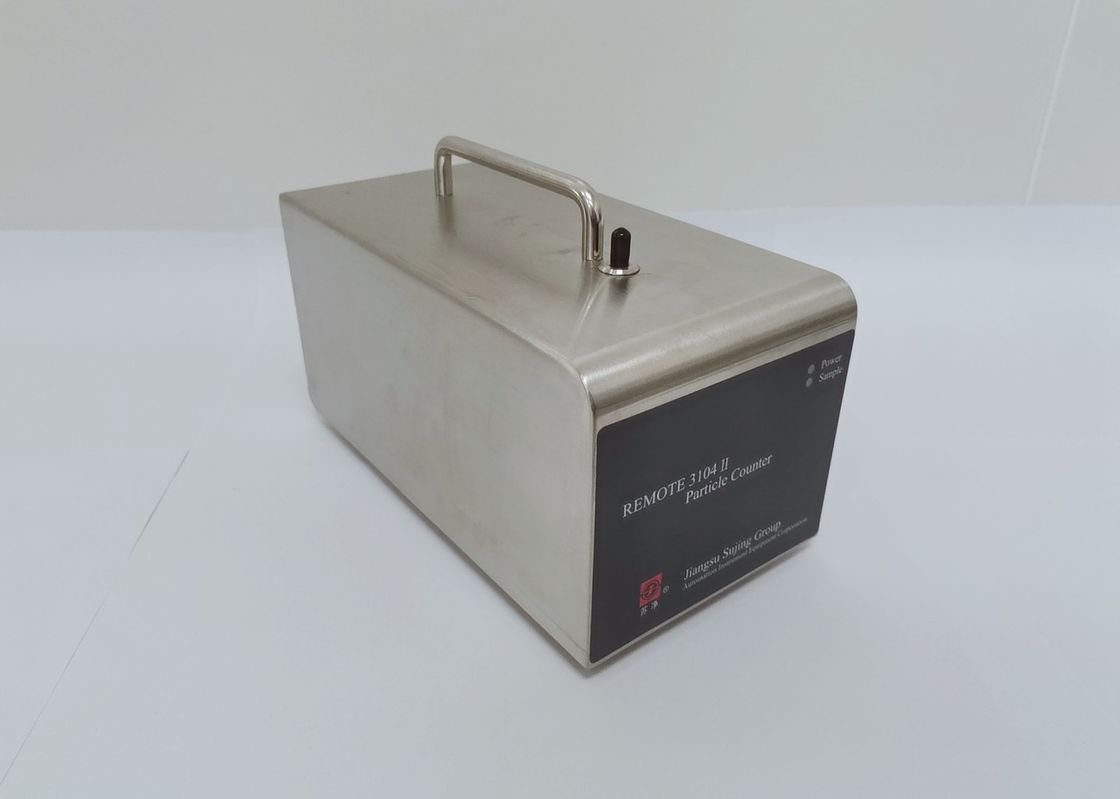

REMOTE 3104
28.3LPM (1.0CFM) built-in pump
| Outside Dim | 275*450*175 mm³(Wide*Deep*High) |
| Weight | 4kg |
| Max. Consumption | 40W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
REMOTE3102
28.3LPM (1.0CFM)
| Outside Dim | 100*45*60 mm³(Wide*Deep*High) |
| Power Source | DC9V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environment | Temperature:10℃-40℃; Humidity: 20%-90%RH; Atmosphere Pressure:86-106Kpa |
| External Vacuum | 60Kpa |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
FKC-III Microbial Air Sampler
| Sampling flow rate | 100L/min or 28.3L/min |
| Sample volume | 10-9999L |
| Sampling delay | 1-60 seconds |
| Collection methods | Remote control or manually |
| Battery | Lithium Battery 16.8V 8.8Ah, can work 10 hours |
| Weight | 6kg |
| Plate size | 90*15mm |
| Display window | High brightness LCD display |
| Operating environment | Temperature: 0 - 50 degree celsius, humidity: 10-90% |
