Size Channels: | 0.3, 0.5, 1, 3, 5, 10 μm | Flow Rate: | 28.3L/min (Imported Pump) |
---|---|---|---|
Operating Time: | More Than 5.5 Hours | Weight: | 3.5kg |
Class: | ISO14644-1:2015 | Warranty Time: | 1 Year |
Highlight: | 0.3um Portable Airborne Particle Counter,Y09-310NW Portable Airborne Particle Counter,28.3L/min Portable Airborne Particle Counter |

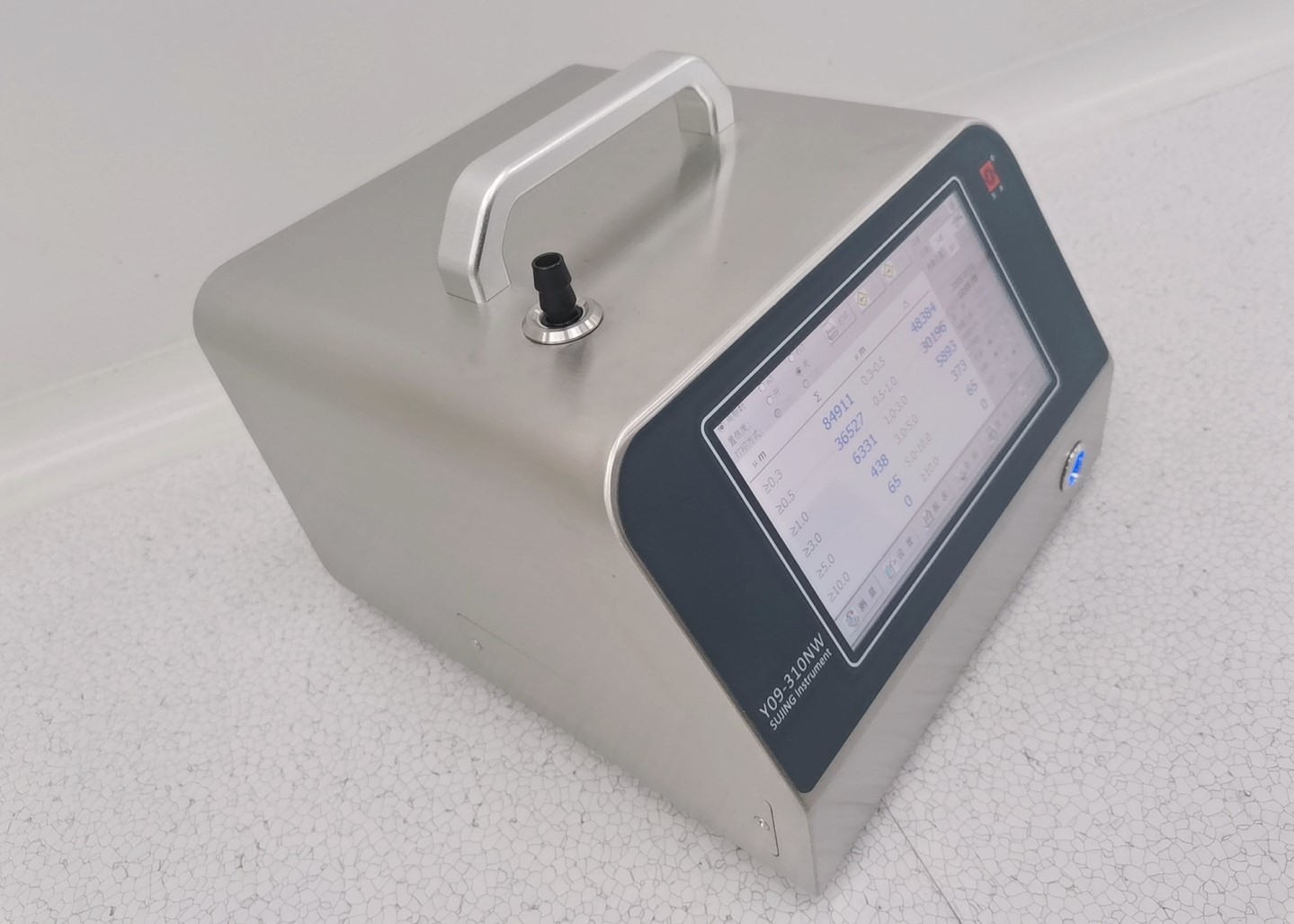

1CFM Portable Dust Particle Counter Lab Instrument
When you are looking to take your environmental monitoring program to the next level, the Y09-310NW is your solution. The power of the Y09-310NW starts with the most complete system of self-diagnostics in the industry, an enclosure that is sealed, easy to wipe-down, and chemically compatible with all major cleaning solutions, and much more.
The specification of portable particle counter
Outside Dim | 245*268*160 (mm3); (Wide*Deep*High) |
Display | 7 inch touch screen |
Weight | 3.5Kg |
Max. Consumption | 80W |
Power Source | DC16.8V built-in Lithium Battery; AC 220V ± 10% |
Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
Calculation | 95% UCL calculation, can display and print particle concentration (particles / cubic meter, particles /cubic feet) |
Flow Rate | 28.3L/min (Imported Pump) |
Sample Time | 6s---999999s (Selectable) |
Cycles | 0-99 |
Hold Time | 0-9999s |
Delay Time | 5-999s |
Zero Court | <=10min |
Location | 1-99 |
Alarm | ISO Class |
Printer | Built-in Thermal Printer |
Data Storage | 20000Samples /300 Samples of UCL (With PC Software) |
Light Source | Laser Diode (30,000 hours Mean Time Between Failures) |
Counting efficiency | 50% @ 0.3μm and 100% for particles >0.45μm (ISO21501) |
Maximum Rated Particle Concentration | 35000 particles/L |
Operating Time | More than 5.5 hours |
Environmental Temperature | Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa |
Features of air particle counter
1. Sample volume 28.3 LPM (1.0CFM).
2. Simultaneously display of up to six particle sizes
3. 20000-record data storage memory
4. Meet the requirements of ISO14644-1:2015
