Digital Aerosol Photometer
/
APM-18 Digital Aerosol Photometer NSF 49 For HVAC System
|
APM-18 Digital Aerosol Photometer NSF 49 For HVAC System
| Brand Name: | SUJING |
| Model Number: | APM-18 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
China
Reagent Settings:
PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Weight:
Weight
Output:
Wireless Printer, USB Interface
Standards Compliance:
NSF 49, IEST, ISO-14644
Light Source:
Solid State, Rated For Life Of Instrument
Warranty Time:
1 Year
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
HVAC system Digital Aerosol Photometer
,HVAC System Digital Aerosol Photometer
,NSF 49 Digital Aerosol Photometer
Product Description

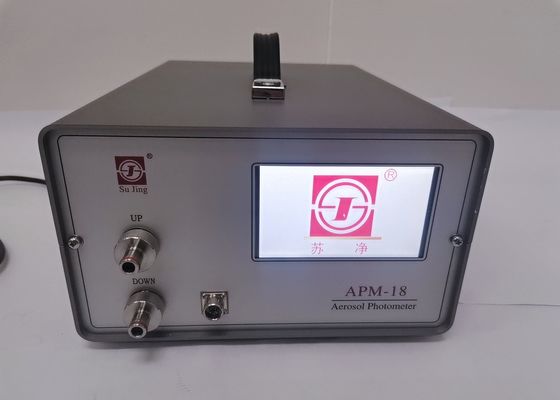

APM-18 Digital Aerosol Photometer For HVAC System
APM-18 aerosol photometer is designed according to scattering theory. It can be used to detect leakage of highly efficient filters. The device can realize the detection of aerosol upstream and downstream. It can be applied to the clean room, laminar flow, biological safety cabinet, HEPA system, HVAC system, HEPA filter, vacuum filter, and the filter.
Features and Benefits of aerosol photometer
- long life laser light source;
- high precision photoelectric multiplier tube detection;
- can set PAO, DOP and other types of aerosols;
- equipped with a dedicated handheld device to achieve control, display and sampling function;
- large capacity data storage, real-time data storage;
- more than the setting alarm sound and light alarm;
- can be obtained by U disk or thermal printer to print historical data;
- can print leakage rate and other monitoring data in real time;
- through the special software, the sampling data can be imported into PC;
- automatic fault detection.
| APM-18 photometer Specifications | |
| Dynamic Range | Up to 600 micrograms per liter |
| Reagent Settings | PAO-4, DOP, Ondina, Mineral Oil, Paraffin |
| Auto Zero | Automatically establishes zero reading at startup |
| Sensitivity | 1% of readings ≥0.01% to 100% |
| Repeatability | 0.5% of readings ≥0.01% to 100% |
| Flow Control | Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications. |
| Light Source | Solid State, rated for life of instrument |
| Reporting | Continuous, Summary, and Monitoring modes |
| Alarm | User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded. |
| Size | 260 (W)X160(H)X360(D) |
| Weight | 10Kg |
| Output | Wireless printer, USB interface |
| Power | 220VAC, 50/60HZ |
| Standards compliance | NSF 49, IEST, ISO-14644 |
