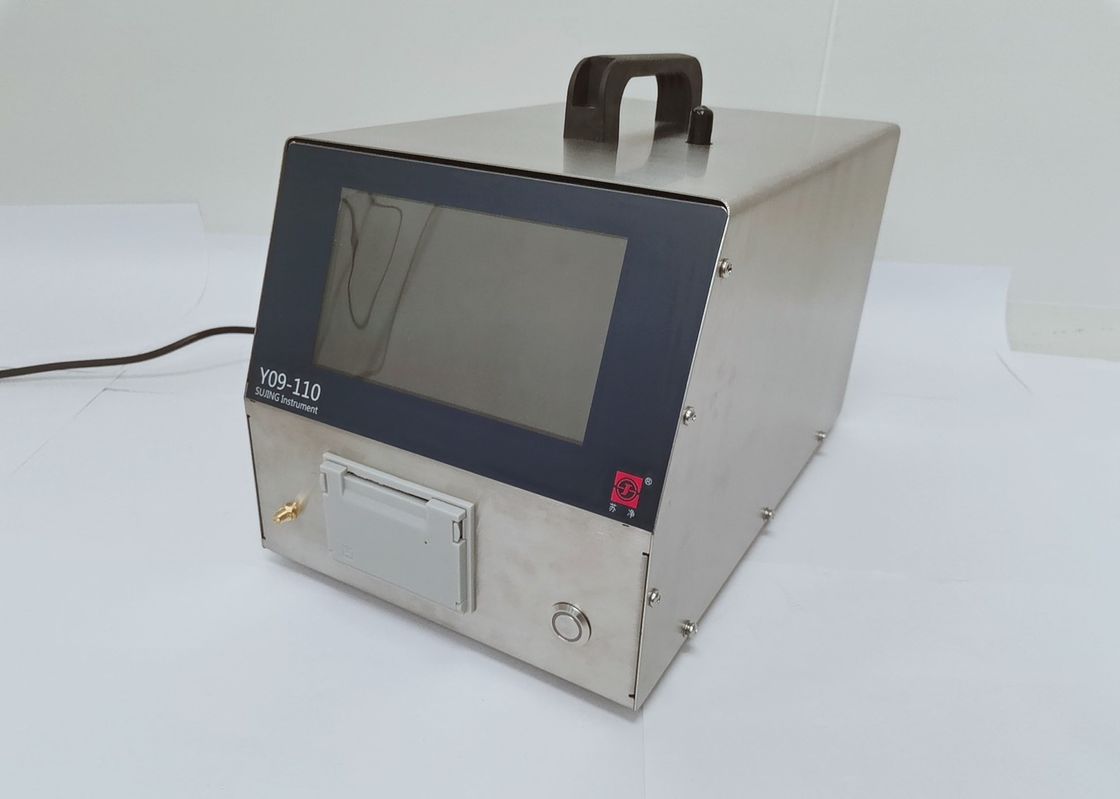

7 Inch LCD Screen Condensation Particle Counter For Facility Certification Testing

7 Inch LCD Screen Condensation Particle Counter For Facility Certification Testing

Brand Name: SUJING
Model Number: Y09-101/Y09-110
MOQ: 1
Price: Negotiable
Payment Terms: T/T
Supply Ability: 500unit/per month
Detail Information
Place of Origin:
CHINA
Name:
Condensation Particle Counter For Facility Certification Testing
Size Channels:
0.1, 0.2, 0.3, 0.5, 1.0 μm
Display:
7inch LCD Color Touch Screen
Zero Time:
<=10min
Environmental Temperature:
Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa
Warranty Time:
1 Year
Packaging Details:
Carton
Supply Ability:
500unit/per month
Highlight:

Condensation Particle Counter Y09-101

,

Condensation Particle Counter 2.83L/min

,

ISO 14644 Condensation Particle Counter

Product Description

Condensation Particle Counter For Facility Certification Testing​



Whether you are certifying to current ISO 14644 standards, EU GMP Annex 1 or Federal Standards 209E, the particle counterhas you covered with its certification report wizard.



The specification of Condensation Particle Counter



Specification Y09-101 particle counter Y09-110 particle counter
Outside Dim 300*360*126mm3 (width*length*high)
Display 7 inch color screen
Weight 6kg 7Kg
Max. Consumption 48W 80W
Power Source AC 220V ± 10%
Size Channels 0.1, 0.2, 0.3, 0.5, 1.0 μm
Flow Rate 2.83L/min 28.3L/min
Zero Time <=10min
Maximum Rated Particle Concentration 35000 particles/L
Environmental Temperature Temperature :10 -35; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa



Features of Condensation Particle Counter

  • 0.1 micron particle counters
  • laser sensor
  • Six size channels from 0.1 to 1.0 μm
  • Saves up to 20,000 samples for review, sorting, data filtering and printing
  • USB data download to flash memory key
  • Built-in thermal printer
  • Large, 7 inch touchscreen can be used when wearing gloves for simplified use
  • Quiet blower/pump for portable applications
  • Calculations and reports for ISO 14644-1

Application of Condensation Particle Counter


• Cleanroom Monitoring
• Facility Certification Testing
• Trend Analysis
• Tool and Equipment Testing
• Multi-Point Facility Monitoring
• Compressed Gas Monitoring
(with High Pressure Controller)
