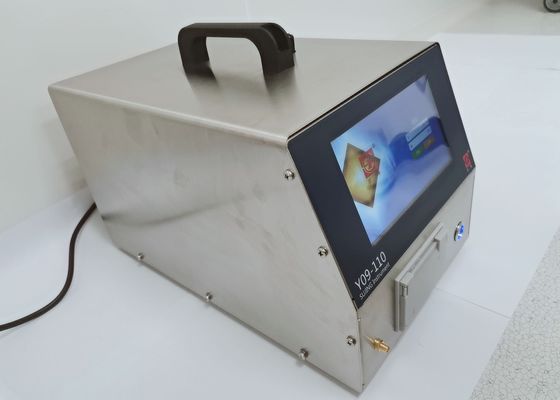

Six Size Channels Condensation Lighthouse Particle Counter AC 220V

Place of Origin: CHINA
Brand Name: SUJING
Model Number: Y09-101/Y09-110
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 500unit/per month
Inquiry Now
Get A Quote
Specifications
Highlight Features

cleanroom 6 Channels lighthouse particle counter

,

48W lighthouse particle counter

,

AC 220V lighthouse particle counter

Name:
Six Size Channels Condensation Portable Air Particle Counter
Outside Dim:
300*360*126mm3 (width*length*high)
Size Channels:
0.1, 0.2, 0.3, 0.5, 1.0 μm
Weight:
6kg
Zero Time:
<=10min
Environmental Temperature:
Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa
Product Description

Six Size Channels Condensation Portable Air Particle Counter



Whether you're certifying your cleanroom to ISO standards, performing routine testing, counting particles in your compressed gas lines, scanning your HEPA filters for leaks, challenge testing your HEPA filters or measuring environmental parameters such as TRH, DP, or AV, the portable particle counter is the right instrument to get the job done.



The specification of Condensation Particle Counter



Specification Y09-101 particle counter Y09-110 particle counter
Outside Dim 300*360*126mm3 (width*length*high)
Display 7 inch color screen
Weight 6kg 7Kg
Max. Consumption 48W 80W
Power Source AC 220V ± 10%
Size Channels 0.1, 0.2, 0.3, 0.5, 1.0 μm
Flow Rate 2.83L/min 28.3L/min
Zero Time <=10min
Maximum Rated Particle Concentration 35000 particles/L
Environmental Temperature Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa



Features of Condensation Particle Counter

  • 0.1 micron particle counters
  • laser sensor
  • Six size channels from 0.1 to 1.0 μm
  • Saves up to 20,000 samples for review, sorting, data filtering and printing
  • USB data download to flash memory key
  • Built-in thermal printer
  • Large, 7 inch touchscreen can be used when wearing gloves for simplified use
  • Quiet blower/pump for portable applications
  • Calculations and reports for ISO 14644-1

Application of Condensation Particle Counter


• Cleanroom Monitoring
• Facility Certification Testing
• Trend Analysis
• Tool and Equipment Testing
• Multi-Point Facility Monitoring
• Compressed Gas Monitoring
(with High Pressure Controller)
