| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | SJFC-200 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Pm 2.5,Pm10 TSP Air Quality Monitor Dust Particle Measurement | Outside Dim: | 200×160×90(Wide×High×Deep) |
|---|---|---|---|
| Display: | 3.5 Inch Color Screen(optional) | Weight: | 2.5KG |
| Size Channels: | PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) | Detection Range: | 0-40mg/m3 |
| High Light: | TSP Air Quality Monitor,40mg/m3 Air Quality Monitor,10W PM10 Air Quality Monitor |
||
Pm 2.5,Pm10 TSP Air Quality Monitor Dust Particle Measurement
Dust monitoring used to detect the Particulate matter PM2.5 and PM10, TSP, Noise,Meteorological parameters (including of Temperature, Humidity, Wind speed, Wind direction, Barometric pressure ). Combined with industrial laser sensor technology and unique heating dehumidification compensation device, the influence of ambient temperature and humidity on the detection results of particulate matter is reduced.
The specification of dust particle measurement
| Outside Dim | 200×160×90(Wide×High×Deep) |
| Display | 3.5 inch color screen(optional) |
| Battery | built-in 5200mah li-ion Battery(optional) |
| Weight | 2.5kg |
| Max.Consumption | 10W |
| Power Source | DC12-24V |
| Size channels | PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) |
| Flow Rate | 1L/min ±5% flow (long life pump) |
| Sample Time | 1-999s Selectable, ≥6s recommended |
| Sensibility | 0.1µg/m3 |
| Repeatability | ≤±2% |
| Accuracy | ≤±10% |
| Detection Range | 0-40mg/m3 |
| Data Output | RS485 / RS232 |
| Comm. protocol | Modbus RTU |
| Operating Time | 5 hours |
| Optional parameters | Temperature, RH, combustible gas, oxygen, carbon dioxide, etc. |
| Data records | 2000 |
| Environmental |
Temperature: -10-50℃; Humidity:<85%RH; Atmosphere Pressure:86-106Kpa |
| Accessories |

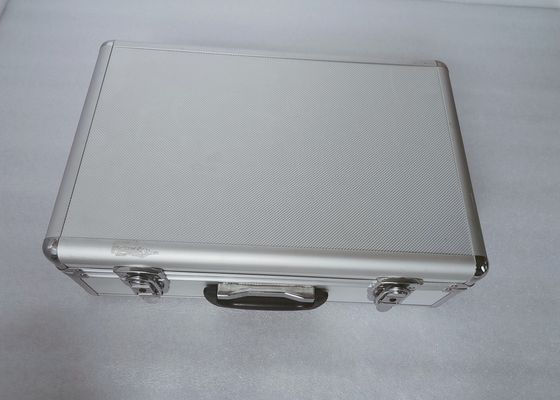

Carrying case, power adapter, zero count filter , Optional: explosion protective and outdoor protective case |

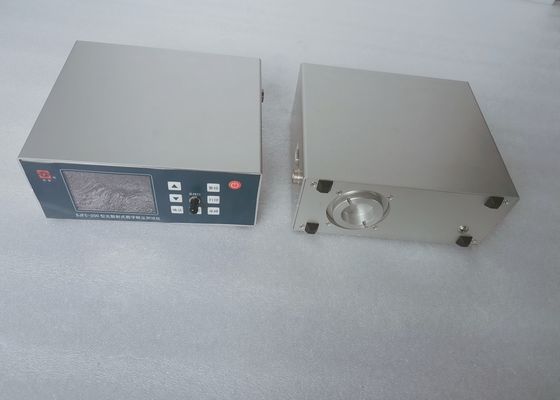

The picture of dust particle measurement
