| Place of Origin: | JIANGSU |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Remote |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T, |
| Supply Ability: | 800/per month |
| Name: | Pharmaceutical Remote Online Particle Cleanroom Monitoring System | Detecting Gas: | Remote Airborne Particle Counter |
|---|---|---|---|
| Sensitivity: | 0.3um | Flow Rate: | 2.83L/min |
| Monitoring Range:: | ISO5-ISO9 | Warranty Time: | 1 Year |
| High Light: | Cleanroom Monitoring System 2.83L/Min,3014 Particle Cleanroom Monitoring System,Remote Cleanroom Monitoring System |
||
Pharmaceutical Remote Online Particle Cleanroom Monitoring System
The online particle monitoring system provides an automated means to monitor and gather airborne particle count and other parameters level in controlled environments. The system allows users to perform a variety of functions from PC including the alteration of alarms information and viewing of particle count concentrations.
Features and Benefits of Cleanroom Monitoring System
1. Compact laser particle sensor with stainless enclosure
2. Two size channels 0.5 & 5.0 micron sensitivity
3. Flow Rate: 2.83L/min, or 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors

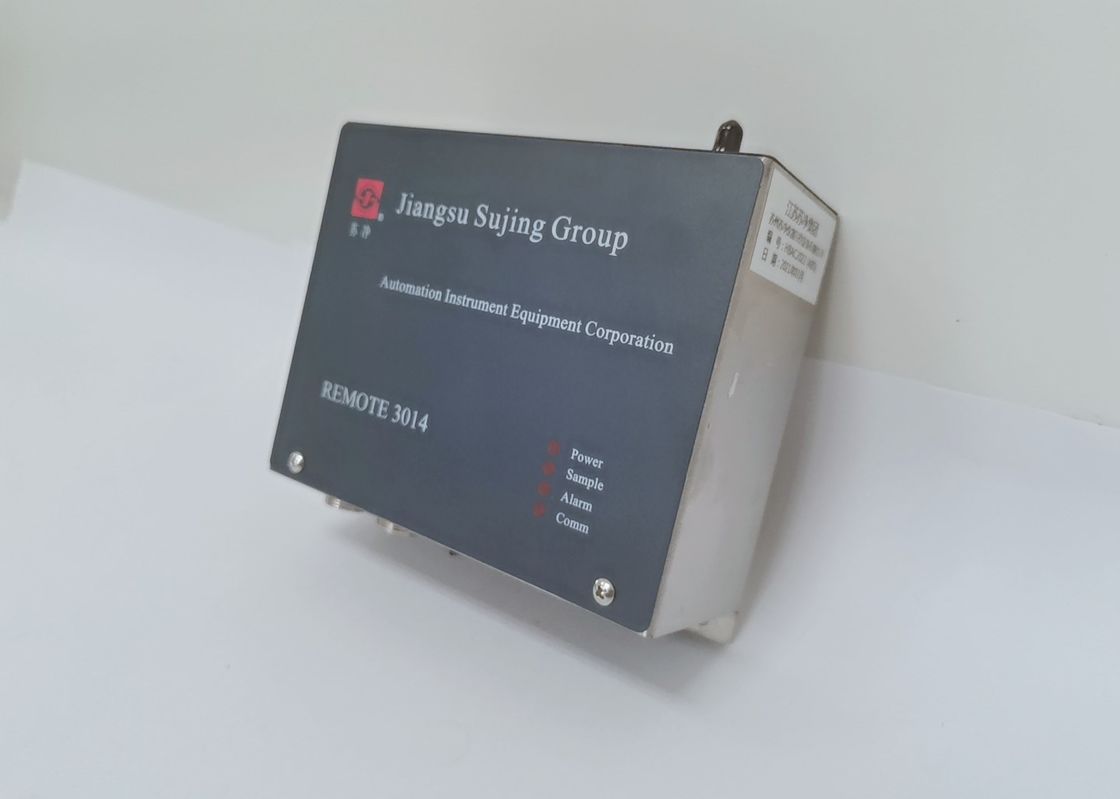

The specification remote 3014 particle counter
| Outside Dim | 149*118*56 mm³(Wide*Deep*High) |
| Weight | 0.8kg |
| Max. Consumption | 3.5W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 2.83L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
