| Place of Origin: | JIANGSU |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Remote |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Particle Counter 24hour Testing For Cleanroom Monitoring System | Detect Class: | ISO Class 5-9 (EU GMP Grade A-D) |
|---|---|---|---|
| Standard: | GMP, ISO14644, FDA, JJF1190-2008 | Two Size Channels: | 0.5 & 5.0 Micron Sensitivity |
| Flow Rate: | 2.83L/min, Or 28.3L/min | Warranty Time: | 1 Year |
| High Light: | 28.3L/min Online Monitoring System,cleanroom FDA Online Monitoring System,5.0 micron sensitivity Online Monitoring System |
||
Comply With GMP And FDA Standard 24Hours Online Monitoring System
online particle counter for measuring the volume of air inside the clean environment unit size and number of dust particles, can be directly detected cleanliness rating for 300000-100 clean environment. Instrument uses a semiconductor laser light source, built-in high-volume sampling pump, online testing (continuous 24hours × 7day operation), in line with the new version of GMP, ISO14644, FDA, JJF1190-2008 Particle Counter standards. Signal transmission distance up to 1.2km, file size can be set for each particle number limit, limit alarm.
1. Compact laser particle sensor with stainless enclosure
2. Two size channels 0.5 & 5.0 micron sensitivity
3. Flow Rate: 2.83L/min, or 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors
REMOTE 3014
2.83LPM (0.1CFM) built-in pump
| Outside Dim | 149*118*56 mm³(Wide*Deep*High) |
| Weight | 0.8kg |
| Max. Consumption | 3.5W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 2.83L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
REMOTE 3104
28.3LPM (1.0CFM) built-in pump
| Outside Dim | 275*450*175 mm³(Wide*Deep*High) |
| Weight | 4kg |
| Max. Consumption | 40W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |

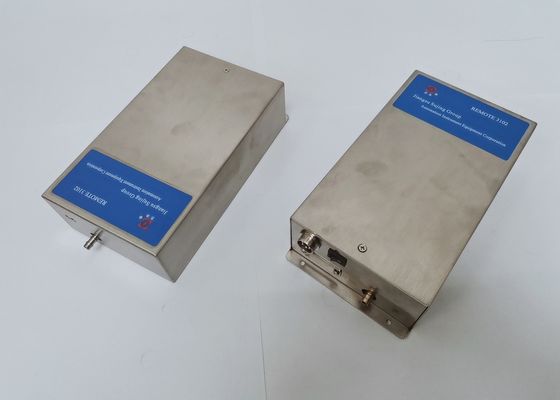

REMOTE3102
28.3LPM (1.0CFM)
| Outside Dim | 100*45*60 mm³(Wide*Deep*High) |
| Power Source | DC9V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environment | Temperature:10℃-40℃; Humidity: 20%-90%RH; Atmosphere Pressure:86-106Kpa |
| External Vacuum | 60Kpa |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
FKC-III Microbial Air Sampler
| Sampling flow rate | 100L/min or 28.3L/min |
| Sample volume | 10-9999L |
| Sampling delay | 1-60 seconds |
| Collection methods | Remote control or manually |
| Battery | Lithium Battery 16.8V 8.8Ah, can work 10 hours |
| Weight | 6kg |
| Plate size | 90*15mm |
| Display window | High brightness LCD display |
| Operating environment | Temperature: 0 - 50 degree celsius, humidity: 10-90% |
