IEST Standard APM-18 Digital Aerosol Photometer For Cleanroom
|
IEST Standard APM-18 Digital Aerosol Photometer For Cleanroom
| Brand Name: | SUJING |
| Model Number: | APM-18 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
IEST Standard Digital Aerosol Photometer
,Cleanroom Digital Aerosol Photometer
,VLF Bench Digital Aerosol Photometer

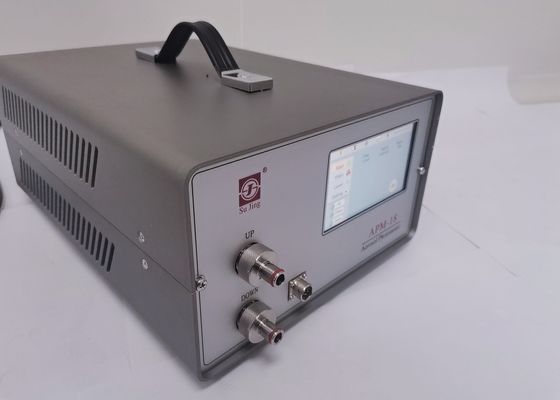

APM-18 Aerosol Leaking Detector Aerosol Photometer For Cleanroom
APM-18 is a photometer produced by SUJING to fill the gap in China. It has applied for national invention patents and utility model patents at the same time; this instrument is mainly used for on-site high-efficiency filter system integrity testing. Its scanning probe can provide all the operating functions of the host. After performance verification, data and facts have proved that its sensitivity, accuracy, repeatability and other technical indicators have reached the international advanced level, and single key indicators such as self-cleaning time have surpassed internationally renowned brands.
Features and Benefits of aerosol photometer
- long life laser light source;
- high precision photoelectric multiplier tube detection;
- can set PAO, DOP and other types of aerosols;
- equipped with a dedicated handheld device to achieve control, display and sampling function;
- large capacity data storage, real-time data storage;
- more than the setting alarm sound and light alarm;
- can be obtained by U disk or thermal printer to print historical data;
- can print leakage rate and other monitoring data in real time;
- through the special software, the sampling data can be imported into PC;
- automatic fault detection.
Application of digital aerosol photometer
- leakage detection of clean room
- VLF bench
- biosafety cabinet
- glove box
- HEPA vacuum cleaner
- HVAC system
- HEPA filter
- negative pressure filtering system
- operating theatre
- nuclear filter system
- collection protect filter
| APM-18 photometer Specifications | |
| Dynamic Range | Up to 600 micrograms per liter |
| Reagent Settings | PAO-4, DOP, Ondina, Mineral Oil, Paraffin |
| Auto Zero | Automatically establishes zero reading at startup |
| Sensitivity | 1% of readings ≥0.01% to 100% |
| Repeatability | 0.5% of readings ≥0.01% to 100% |
| Flow Control | Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications. |
| Light Source | Solid State, rated for life of instrument |
| Reporting | Continuous, Summary, and Monitoring modes |
| Alarm | User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded. |
| Size | 260 (W)X160(H)X360(D) |
| Weight | 10Kg |
| Output | Wireless printer, USB interface |
| Power | 220VAC, 50/60HZ |
| Standards compliance | NSF 49, IEST, ISO-14644 |
