APM-18 Stainless Steel Digital Aerosol Photometer For Hepa Filter
|
APM-18 Stainless Steel Digital Aerosol Photometer For Hepa Filter
| Brand Name: | SUJING |
| Model Number: | APM-18 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
China
Name:
APM-18 Aerosol Photometer And Aerosol Generator For Hepa Filter
Warranty Time:
1 Year
Material:
Stainless Steel
Model:
APM-18
Dynamic Range:
Up To 600 Micrograms Per Liter
Application:
Medical/Chemical/Electronic/Research Institute/Clean Room
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
Hepa Filter Aerosol Photometer
,Stainless Steel Aerosol Generator
,Stainless Steel Digital Aerosol Photometer
Product Description

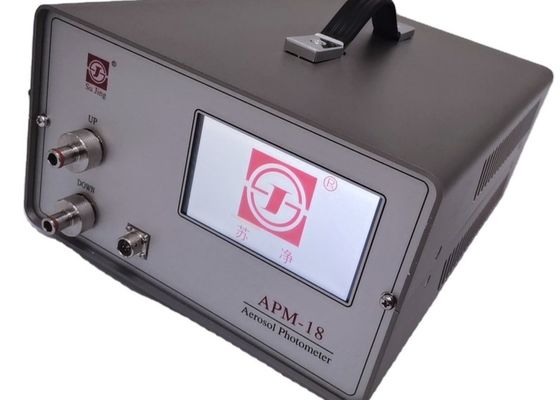

APM-18 Aerosol Photometer And Aerosol Generator For Hepa Filter
Aerosol Photometer is a kind of special test instrument to test the leakage of HEPA, designed on the base of light scattering principle, displays real-time leakage rate by detecting aerosol concentrations of upstream and downstream. Applicable for testing clean rooms, laminar flow benches, bio-safety cabinets, glove boxes, HEPA vacuum cleaners, HVAC systems, HEPA filters, ULPA filters, negative pressure filtration units, surgical suites, nuclear filter banks, collective protection filters, et
Features and Benefits of aerosol photometer
- long life laser light source;
- high precision photoelectric multiplier tube detection;
- can set PAO, DOP and other types of aerosols;
- equipped with a dedicated handheld device to achieve control, display and sampling function;
- large capacity data storage, real-time data storage;
- more than the setting alarm sound and light alarm;
- can be obtained by U disk or thermal printer to print historical data;
- can print leakage rate and other monitoring data in real time;
- through the special software, the sampling data can be imported into PC;
- automatic fault detection.
Application of digital aerosol photometer
- leakage detection of clean room
- VLF bench
- biosafety cabinet
- glove box
- HEPA vacuum cleaner
- HVAC system
- HEPA filter
- negative pressure filtering system
- operating theatre
- nuclear filter system
- collection protect filter
| APM-18 photometer Specifications | |
| Dynamic Range | Up to 600 micrograms per liter |
| Reagent Settings | PAO-4, DOP, Ondina, Mineral Oil, Paraffin |
| Auto Zero | Automatically establishes zero reading at startup |
| Sensitivity | 1% of readings ≥0.01% to 100% |
| Repeatability | 0.5% of readings ≥0.01% to 100% |
| Flow Control | Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications. |
| Light Source | Solid State, rated for life of instrument |
| Reporting | Continuous, Summary, and Monitoring modes |
| Alarm | User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded. |
| Size | 260 (W)X160(H)X360(D) |
| Weight | 10Kg |
| Output | Wireless printer, USB interface |
| Power | 220VAC, 50/60HZ |
| Standards compliance | NSF 49, IEST, ISO-14644 |
