Digital Aerosol Photometer
/
Detect Leak Test Digital Aerosol Photometer PWM Control
|
Detect Leak Test Digital Aerosol Photometer PWM Control
| Brand Name: | SUJING |
| Model Number: | APM-18 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
China
Name:
APM-18 Detect Leak Test Equipment Didital Aerosol Photometer
Repeatability:
0.5% Of Readings ≥0.01% To 100%
Sensitivity:
1% Of Readings ≥0.01% To 100%
Flow Control:
Pulse Width Modulation (PWM) Control Ensures Sampling Rate Of 1cfm (28.3lpm) +/- 10% In All Applications.
Auto Zero:
Automatically Establishes Zero Reading At Startup
Dynamic Range:
Up To 600 Micrograms Per Liter
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
Detect Leak Test Digital Aerosol Photometer
,PWM Control Digital Aerosol Photometer
,Auto Zero Digital Aerosol Photometer
Product Description

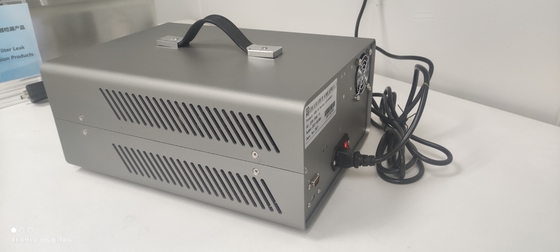

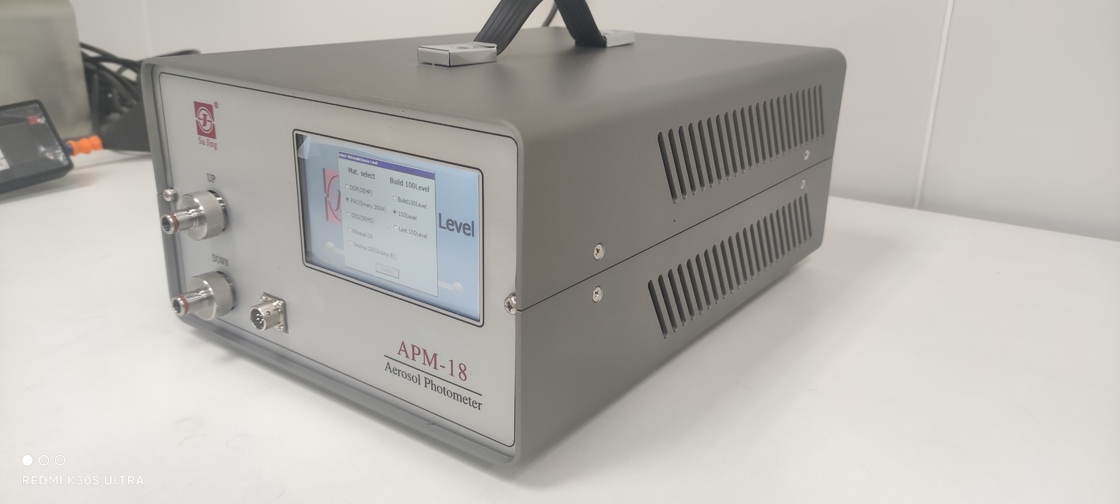

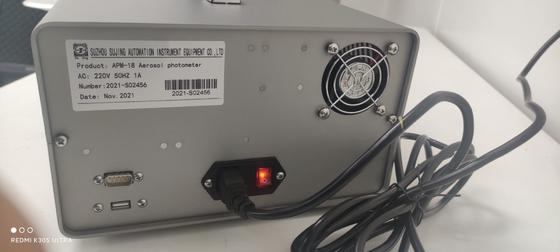

APM-18 Detect Leak Test Equipment Didital Aerosol Photometer
Aerosol photometer is designed according to Mie scattering theory. It can be used to detect leakage of highly efficient filters. The device can realize the detection of aerosol upstream and downstream. It can be applied to the clean room, laminar flow, biological safety cabinet, HEPA system, HVAC system, HEPA filter, vacuum filter, and the filter.
Features and Benefits of aerosol photometer
- long life laser light source;
- high precision photoelectric multiplier tube detection;
- can set PAO, DOP and other types of aerosols;
- equipped with a dedicated handheld device to achieve control, display and sampling function;
- large capacity data storage, real-time data storage;
- more than the setting alarm sound and light alarm;
- can be obtained by U disk or thermal printer to print historical data;
- can print leakage rate and other monitoring data in real time;
- through the special software, the sampling data can be imported into PC;
- automatic fault detection.
Application of digital aerosol photometer
- leakage detection of clean room
- VLF bench
- biosafety cabinet
- glove box
- HEPA vacuum cleaner
- HVAC system
- HEPA filter
- negative pressure filtering system
- operating theatre
- nuclear filter system
- collection protect filter
| APM-18 photometer Specifications | |
| Dynamic Range | Up to 600 micrograms per liter |
| Reagent Settings | PAO-4, DOP, Ondina, Mineral Oil, Paraffin |
| Auto Zero | Automatically establishes zero reading at startup |
| Sensitivity | 1% of readings ≥0.01% to 100% |
| Repeatability | 0.5% of readings ≥0.01% to 100% |
| Flow Control | Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications. |
| Light Source | Solid State, rated for life of instrument |
| Reporting | Continuous, Summary, and Monitoring modes |
| Alarm | User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded. |
| Size | 260 (W)X160(H)X360(D) |
| Weight | 10Kg |
| Output | Wireless printer, USB interface |
| Power | 220VAC, 50/60HZ |
| Standards compliance | NSF 49, IEST, ISO-14644 |
