Remote Particle Counter Cleanroom Monitoring System 24H 60Kpa Vacuum

Remote Particle Counter Cleanroom Monitoring System 24H 60Kpa Vacuum
Remote Particle Counter Cleanroom Monitoring System 24H 60Kpa Vacuum

Large Image :  Remote Particle Counter Cleanroom Monitoring System 24H 60Kpa Vacuum

Product Details:
Place of Origin: JIANGSU
Brand Name: SUJING
Model Number: Remote
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T,
Supply Ability: 800/per month
Detailed Product Description
Name: Remote Particle Counter 24 Hours Cleanroom Monitoring System Detecting Gas: Remote Airborne Particle Counter
Sensitivity: 0.5um External Vacuum: 60Kpa
Monitoring Range:: ISO5-ISO9 Warranty Time: 1 Year
High Light:

60 Kpa Cleanroom Monitoring System

,

24H Cleanroom Monitoring System

,

Stainless Enclosure Cleanroom Monitoring System

 Remote Particle Counter 24 hours Cleanroom Monitoring System



The basic principle of laser particle counter is the detection of optical sensor. After scattering by particles, the laser is received by photosensitive element and generates pulse signal. The pulse signal is output and amplified, and then digital signal processing is carried out. By comparing with standard particle signal, the comparison result is expressed with different parameters.





Features and Benefits of Cleanroom Monitoring System

1. Compact laser particle sensor with stainless enclosure

2. Two size channels 0.5 & 5.0 micron sensitivity

3. Flow Rate: 2.83L/min, or 28.3L/min

4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)

5. Multi-function, user-friendly monitoring software

6. One PC system controls up to 128 sensors

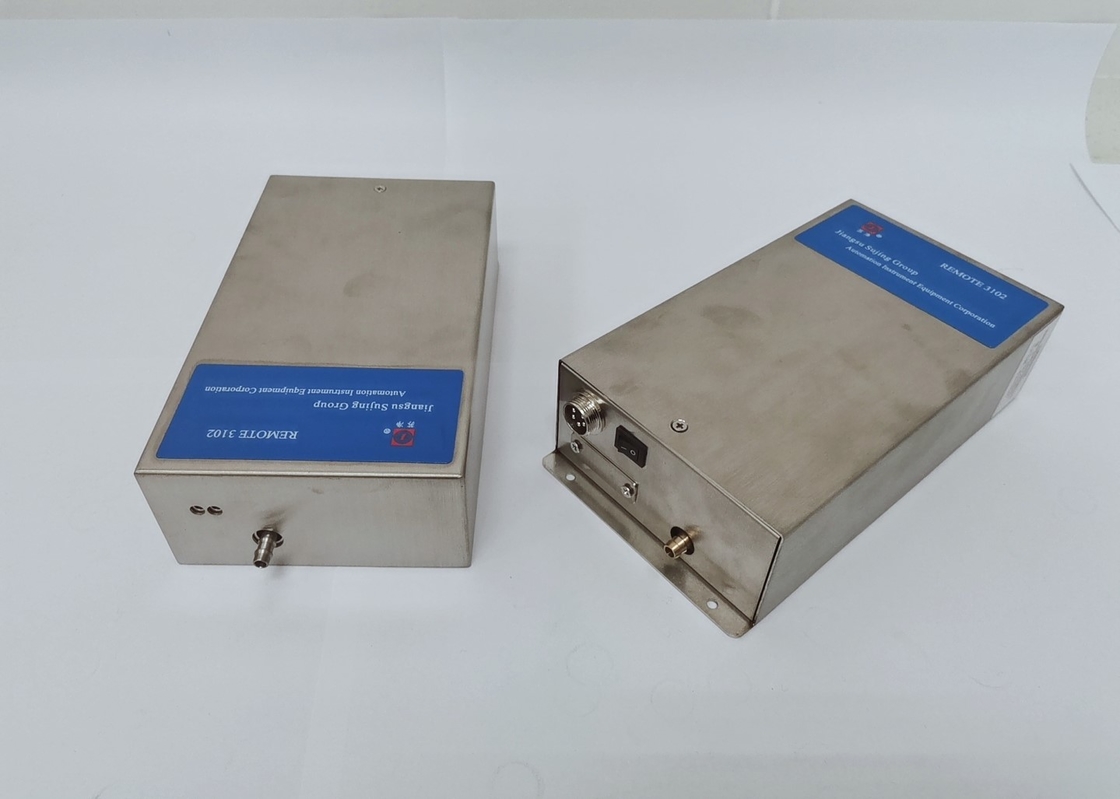

The specification of Remote 3102 remote particle counter

Outside Dim 100*45*60 mm³(Wide*Deep*High)
Power Source DC9V
Size Channels 0.5, 5μm
Flow Rate 28.3L/min
Environment Temperature:10℃-40℃; Humidity: 20%-90%RH; Atmosphere Pressure:86-106Kpa
External Vacuum 60Kpa
Zero Court <=10min
Data Output RS485(modbus) or 4-20mA



Remote Particle Counter Cleanroom Monitoring System 24H 60Kpa Vacuum 0
