| Name: | Remote Online Particle Counter Cleanroom Monitoring System | Detect Class: | ISO Class 5-9 (EU GMP Grade A-D) |
|---|---|---|---|
| Standard: | GMP, ISO14644, FDA, JJF1190-2008 | Two Size Channels: | 0.5 & 5.0 Micron Sensitivity |
| Flow Rate: | 2.83L/min, Or 28.3L/min | Warranty Time: | 1 Year |
| High Light: | High Brightness Cleanroom Monitoring System,2.83L/min Cleanroom Monitoring System,Remote Control Cleanroom Monitoring System |
||

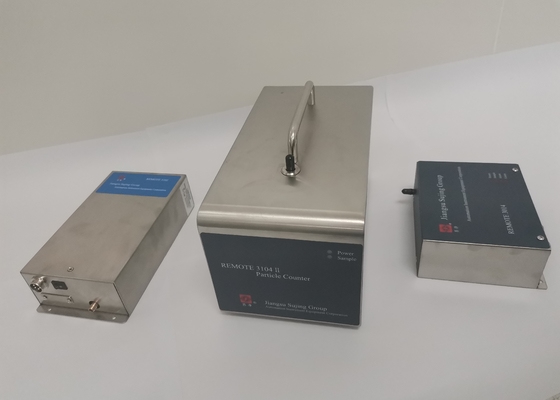

Remote Online Particle Counter Cleanroom Monitoring System
The basic principle of laser particle counter is the detection of optical sensor. After scattering by particles, the laser is received by photosensitive element and generates pulse signal. The pulse signal is output and amplified, and then digital signal processing is carried out. By comparing with standard particle signal, the comparison result is expressed with different parameters.
It is used to measure the number and size distribution of dust particles per unit volume in clean environment.
Features and Benefits
1. Compact laser particle sensor with stainless enclosure
2. Two size channels 0.5 & 5.0 micron sensitivity
3. Flow Rate: 2.83L/min, or 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors
REMOTE 3014
2.83LPM (0.1CFM) built-in pump
| Outside Dim | 149*118*56 mm³(Wide*Deep*High) |
| Weight | 0.8kg |
| Max. Consumption | 3.5W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 2.83L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
REMOTE 3104
28.3LPM (1.0CFM) built-in pump
| Outside Dim | 275*450*175 mm³(Wide*Deep*High) |
| Weight | 4kg |
| Max. Consumption | 40W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
REMOTE3102
28.3LPM (1.0CFM)
| Outside Dim | 100*45*60 mm³(Wide*Deep*High) |
| Power Source | DC9V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environment | Temperature:10℃-40℃; Humidity: 20%-90%RH; Atmosphere Pressure:86-106Kpa |
| External Vacuum | 60Kpa |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
FKC-III Microbial Air Sampler
| Sampling flow rate | 100L/min or 28.3L/min |
| Sample volume | 10-9999L |
| Sampling delay | 1-60 seconds |
| Collection methods | Remote control or manually |
| Battery | Lithium Battery 16.8V 8.8Ah, can work 10 hours |
| Weight | 6kg |
| Plate size | 90*15mm |
| Display window | High brightness LCD display |
| Operating environment | Temperature: 0 - 50 degree celsius, humidity: 10-90% |
