Aerosol Photometer For Cleanroom Biological Cabinet Leak Detection

Basic Information
Place of Origin: China
Brand Name: SUJING
Model Number: APM-18
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: Aerosol Photometer For Cleanroom Biological Cabinet Leak Detection Reagent Settings: PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Weight: Weight Output: Wireless Printer, USB Interface
Standards Compliance: NSF 49, IEST, ISO-14644 Light Source: Solid State, Rated For Life Of Instrument
High Light:

Aerosol Photometer For Cleanroom

,

USB Interface Aerosol Photometer

,

Solid State Aerosol Photometer


Product Description

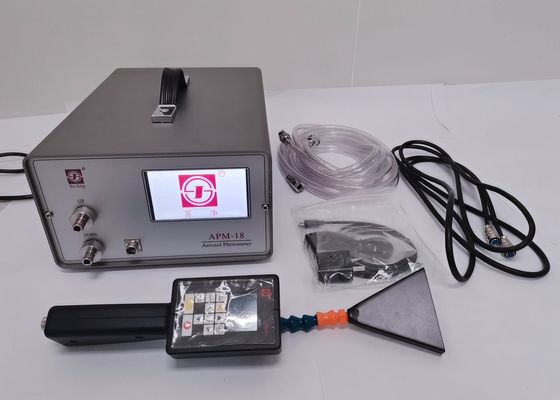

Aerosol Photometer For Cleanroom Biological Cabinet Leak Detection



The APM-18 is the most highly advanced aerosol photometer available today. The APM-18 utilizes a high resolution graphics display providing an easy to read panel display. The extremely simple menu-driven software system utilizes command prompts to inform the user of each setup process. The powerful microprocessor provides control of numerous functions, not available on any other aerosol photometer. APM-18 plug and play probe is light weight and features remotecontrol of alarm options (includes a visual, audible, and the NEWINNOVATIVE VIBRATING alarm). The machined aluminum housing and heavy duty metal connector to the main unit provides years of trouble-free use. FEATURES: High Resolution Graphical Display Menu-Driven Software Functions Automatic Zeroing and Ranging Proven LED Light Source (Light Chamber)Reference Settings for Multiple Testing Reagents Retains Reference Settings When Powered Off Displays Upstream Ref. / Concentration Setting Stable at Low Concentrations of Aerosol (≥ 10ug/l)Probe Selectable Audible, Visual, Vibrating Alarms Plug and Play Probe – 11 foot length USB Interface.Lightweight Heavy Duty Black Aluminum Case Accepts Worldwide Operating Voltages Optional Heavy Duty Shipping / Carrying Case



Features and Benefits of aerosol photometer

  • long life laser light source;
  •  high precision photoelectric multiplier tube detection;
  •  can set PAO, DOP and other types of aerosols;
  • equipped with a dedicated handheld device to achieve control, display and sampling function;
  •  large capacity data storage, real-time data storage;
  • more than the setting alarm sound and light alarm;
  • can be obtained by U disk or thermal printer to print historical data;
  •  can print leakage rate and other monitoring data in real time;
  •  through the special software, the sampling data can be imported into PC;
  •  automatic fault detection.

Application of digital aerosol photometer

  • leakage detection of clean room
  • VLF bench
  • biosafety cabinet
  • glove box
  • HEPA vacuum cleaner
  • HVAC system
  • HEPA filter
  • negative pressure filtering system
  • operating theatre
  • nuclear filter system
  • collection protect filter
APM-18 photometer Specifications
Dynamic Range Up to 600 micrograms per liter
Reagent Settings PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Auto Zero Automatically establishes zero reading at startup
Sensitivity 1% of readings ≥0.01% to 100%
Repeatability 0.5% of readings ≥0.01% to 100%
Flow Control Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications.
Light Source Solid State, rated for life of instrument
Reporting Continuous, Summary, and Monitoring modes
Alarm User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded.
Size 260 (W)X160(H)X360(D)
Weight 10Kg
Output Wireless printer, USB interface
Power 220VAC, 50/60HZ
Standards compliance NSF 49, IEST, ISO-14644





Aerosol Photometer For Cleanroom Biological Cabinet Leak Detection 0
