Y09-5100X Pro Laser Air Particle Counter For Cleanroom 100 L/min

Basic Information
Place of Origin: China
Brand Name: SUJING
Certification: CNAS
Model Number: Y09-5100X Pro
Minimum Order Quantity: 1UNIT
Price: Negotiation
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000units/week
Detail Information
Particle Size Channel:: 0.5, 1.0, 3.0, 5.0, 10.0, 25.0 (μm) Sampling Flow Rate:: 100 L/min
Alarm: Built-in Alarm Buzzer Interface:: USB
Shell Material:: 316L Stainless Steel Printer:: Built-in Thermal Printer
High Light:

Cleanroom Air Particle Counter


Pro Laser Particle Counter


100 L/min Air Particle Counter

Product Description

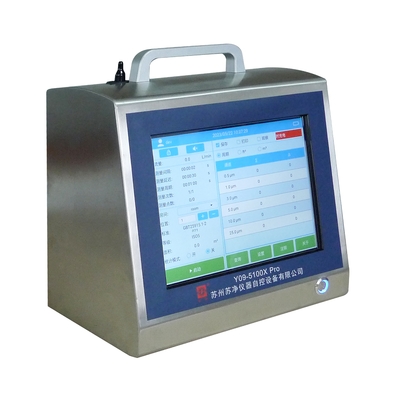

Y09-5100X Pro Laser Air Particle Counter

Y09-5100X Pro Laser Air Particle Counter For Cleanroom 100 L/min 0

Y09-5100X Pro laser air particle counter is a new generation of particle counter products developed to adapt to the new national policy and new orientation. It is widely used in electronics, optics, chemistry, food, cosmetics, medicine and health, biological products, aerospace, and other fields.


Y09-5100X Pro meets national standards, including GB/T29024.4-2017, ISO21501-4:2018 and GB/T 25915.1-2021 and pharmaceutical GMP specifications. Compared with similar products, it is smaller, lighter, and more compact. This instrument is mainly used to measure the size and number of dust particles per unit volume of air in the air environment. It can directly detect clean environments with cleanliness levels from class 300,000 to 10.


Technical specification

Size: 245 x 292 x 276 mm3
Weight: 7 KG (include battery)
Power Supply: DC 16.8 V (rechargeable built-in lithium-ion battery)
Particle size channel: 0.5, 1.0, 3.0, 5.0, 10.0, 25.0 (μm)
Sampling period: 1 - 999,999 sec
Sampling flow rate: 100 L/min
Max sampling air concentration: 35,000 particles /L (particle size≥0.5 μm; sampling air must not contain corrosive gases such as acid and alkali)
Alarm: Built-in alarm buzzer
Ventilation: Built-in HEPA filter (> 99.997%@0.3 um)
Data storage: 1,000,000 sets of common test data; 10,000 sets of statistical mode operation data
Data security: Authority management (Authority level can be divided into administrator, technician, operator)
Light source and life span: Semiconductor laser source >30,000 h
Zero count: ≤10 min
Interface: USB
No. of rooms: Unlimited
Name of rooms: Unlimited (Chinese, letters, numbers, special characters)
Calibration frequency: Once a year recommended
Shell material: 316L stainless steel
Printer: Built-in thermal printer
