Cleanroom Condensation Aerosol Particle Counter 48W 86Kpa
|
Cleanroom Condensation Aerosol Particle Counter 48W 86Kpa
| Brand Name: | SUJING |
| Model Number: | Y09-101/Y09-110 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500unit/per month |
Detail Information
Place of Origin:
CHINA
Name:
Condensation Laser Airborne Particle Counter Using In Cleanroom
Outside Dim:
300*360*126mm3 (width*length*high)
Size Channels:
0.1, 0.2, 0.3, 0.5, 1.0 μm
Weight:
6kg
Zero Time:
<=10min
Environmental Temperature:
Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
500unit/per month
Highlight:
86Kpa Cleanroom aerosol particle counter
,1.0um aerosol particle counter
,48W aerosol particle counter
Product Description

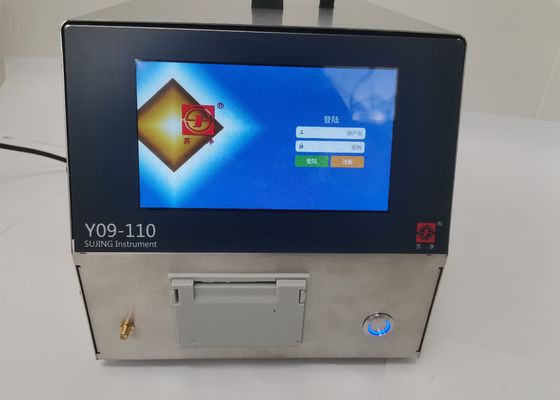

Condensation Laser Airborne Particle Counter Using In Cleanroom
Laser particle counter is used to measure dust particle quantity and size distribution in per unit volume of clean environment .On-line monitoring system for suspended particles is integrated with the function of particle counter and floating bacteria sampler ,real-time detection and record environment state. .
The specification of Condensation Particle Counter
| Specification | Y09-101 particle counter | Y09-110 particle counter |
| Outside Dim | 300*360*126mm3 (width*length*high) | |
| Display | 7 inch color screen | |
| Weight | 6kg | 7Kg |
| Max. Consumption | 48W | 80W |
| Power Source | AC 220V ± 10% | |
| Size Channels | 0.1, 0.2, 0.3, 0.5, 1.0 μm | |
| Flow Rate | 2.83L/min | 28.3L/min |
| Zero Time | <=10min | |
| Maximum Rated Particle Concentration | 35000 particles/L | |
| Environmental Temperature | Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa | |
Features of Condensation Particle Counter
- 0.1 micron particle counters
- laser sensor
- Six size channels from 0.1 to 1.0 μm
- Saves up to 20,000 samples for review, sorting, data filtering and printing
- USB data download to flash memory key
- Built-in thermal printer
- Large, 7 inch touchscreen can be used when wearing gloves for simplified use
- Quiet blower/pump for portable applications
- Calculations and reports for ISO 14644-1
Application of Condensation Particle Counter
• Cleanroom Monitoring
• Facility Certification Testing
• Trend Analysis
• Tool and Equipment Testing
• Multi-Point Facility Monitoring
• Compressed Gas Monitoring
(with High Pressure Controller)
