| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | SJFC-200 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | SJFC-200Dust Particle Measurement Environmental Testing Equipment | Outside Dim: | 200×160×90(Wide×High×Deep) |
|---|---|---|---|
| Display: | 3.5 Inch Color Screen(optional) | Weight: | 2.5KG |
| Size Channels: | PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) | Detection Range: | 0-40mg/m3 |
| High Light: | 10W Environmental Testing Equipment,PM1.0 Environmental Testing Equipment,40mg/m3 Environmental Testing Equipment |
||
SJFC-200Dust Particle Measurement Environmental Testing Equipment
SJFC-200Dust Particle Measurement Environmental Testing Equipment help identify risks to communities and workers from breathable particles. With hard data on outdoor air quality and visibility, organizations can meet health and safety standards.
The specification of dust particle measurement
| Outside Dim | 200×160×90(Wide×High×Deep) |
| Display | 3.5 inch color screen(optional) |
| Battery | built-in 5200mah li-ion Battery(optional) |
| Weight | 2.5kg |
| Max.Consumption | 10W |
| Power Source | DC12-24V |
| Size channels | PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) |
| Flow Rate | 1L/min ±5% flow (long life pump) |
| Sample Time | 1-999s Selectable, ≥6s recommended |
| Sensibility | 0.1µg/m3 |
| Repeatability | ≤±2% |
| Accuracy | ≤±10% |
| Detection Range | 0-40mg/m3 |
| Data Output | RS485 / RS232 |
| Comm. protocol | Modbus RTU |
| Operating Time | 5 hours |
| Optional parameters | Temperature, RH, combustible gas, oxygen, carbon dioxide, etc. |
| Data records | 2000 |
| Environmental |
Temperature: -10-50℃; Humidity:<85%RH; Atmosphere Pressure:86-106Kpa |
| Accessories |
Carrying case, power adapter, zero count filter , Optional: explosion protective and outdoor protective case |

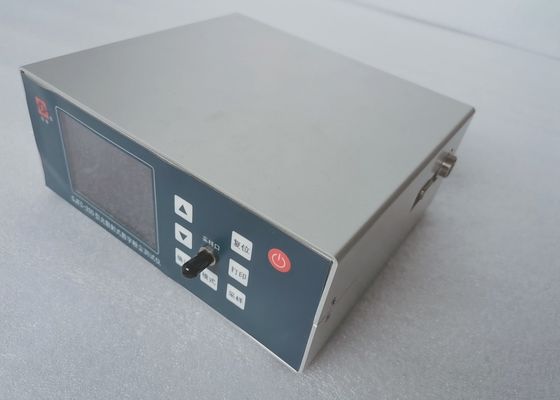

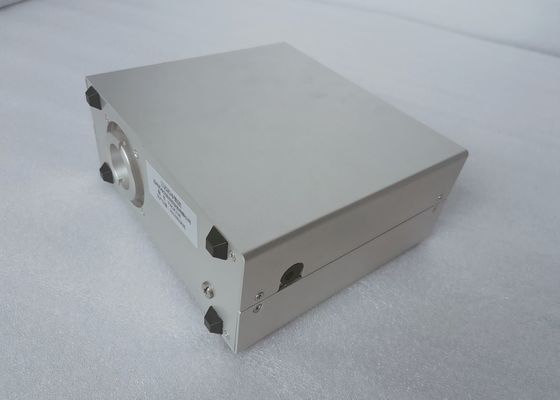

The picture of dust particle measurement
