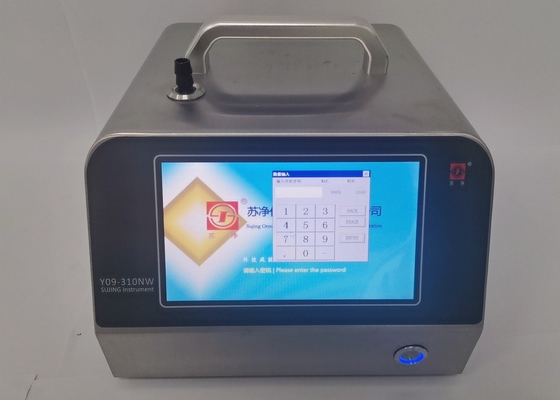

Six Channels Laser Particle Counter 28.3L/Min Flow Rate
| Brand Name: | SUJING |
| Model Number: | Y09-310NW |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500unit/per month |
6 Channel Handheld Laser Particle Counter
,ISO 14644-1 Air Particle Counter
,Laser Particle Counter 28.3L/Min
Laser Particle Counter China Six Channels 28.3L/Min Flow Rate
Y09-310NW Air Particle Counter uses a laser diode light source, with touch screen (LCD) display, having such advantages like reasonable structure, high accuracy large flow rate, short sampling time, simple and convenient operation. The testing data can be directly stored in the U disk without computer acquisition, also it is micro computer controlled, can print sampling results by miniature built-in thermal printer. The instrument is widely used in electronic, optical, chemical, food, cosmetics, pharmaceuticals, biological products, aviation and aerospace etc.
The basic operating principle of the Y09-310NW Particle Counter is a laser scattering pulse signal of an aerosol particle output from an optical sensor which is processed and counted based on digital signal processing. The setting of measurement parameters, results display, and data storage are all controlled and realized by an internal microprocessor (MCU).
The specification of portable particle counter
| Outside Dim | 245*268*160 (mm3); (Wide*Deep*High) |
| Display | 7 inch touch screen |
| Weight | 3.5Kg |
| Max. Consumption | 80W |
| Power Source | DC16.8V built-in Lithium Battery; AC 220V ± 10% |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Calculation | 95% UCL calculation, can display and print particle concentration (particles / cubic meter, particles /cubic feet) |
| Flow Rate | 28.3L/min (Imported Pump) |
| Sample Time | 6s---999999s (Selectable) |
| Cycles | 0-99 |
| Hold Time | 0-9999s |
| Delay Time | 5-999s |
| Zero Court | <=10min |
| Location | 1-99 |
| Alarm | ISO Class |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000Samples /300 Samples of UCL (With PC Software) |
| Light Source | Laser Diode (30,000 hours Mean Time Between Failures) |
| Counting efficiency | 50% @ 0.3μm and 100% for particles >0.45μm (ISO21501) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Environmental Temperature | Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa |
Features of air particle counter
1. Sample volume 28.3 LPM (1.0CFM).
2. Simultaneously display of up to six particle sizes
3. 20000-record data storage memory
4. Meet the requirements of ISO14644-1:2015
5. Built-in Thermal Printer
6. Low power display
