| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-101/Y09-110 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500unit/per month |
| Name: | Y09-101/Y09-110 0.1uM Condensation Particle Counter In Cleanroom | Size Channels: | 0.1, 0.2, 0.3, 0.5, 1.0 μm |
|---|---|---|---|
| Display: | 7inch LCD Color Touch Screen | Flow Rate: | 28.3L/min (Imported Pump) |
| Operating Time: | More Than 5.5 Hours | Warranty Time: | 1 Year |
| High Light: | Touch Screen Condensation Particle Counter,Touch Screen 0.1 Micron Particle Counter,0.1 Micron Condensation Particle Counter |
||

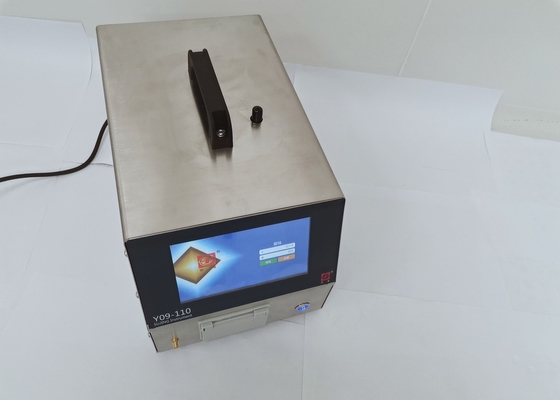

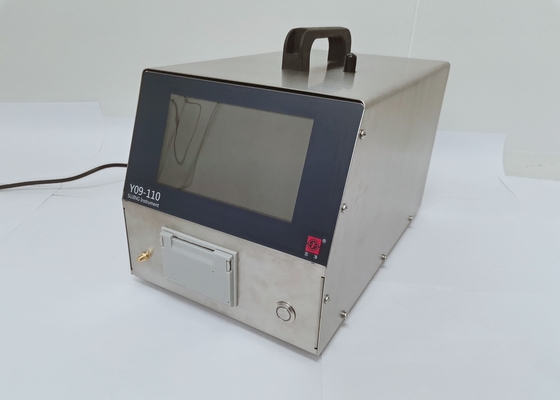

Y09-101/Y09-110 0.1uM Condensation Particle Counter In Cleanroom
The basic principle laser particle counter is the detection of optical sensor. After scattering by particles, the laser is received by photosensitive element and generates pulse signal. The pulse signal is output and amplified, and then digital signal processing is carried out. By comparing with standard particle signal, the comparison result is expressed with different parameters.
It is used to measure the number and size distribution of dust particles per unit volume in clean environment.
0.1μm Condensation Portable Air Particle Counter In Cleanroom is a laser diode-based true 0.1 micron (μm) particle counter with 1.00 CFM flow rate. It provides real-time measurement of yield-impacting particles with three configurations to meet your unique application needs.
The specification of Condensation Particle Counter
| Specification | Y09-101 particle counter | Y09-110 particle counter |
| Outside Dim | 300*360*126mm3 (width*length*high) | |
| Display | 7 inch color screen | |
| Weight | 6kg | 7Kg |
| Max. Consumption | 48W | 80W |
| Power Source | AC 220V ± 10% | |
| Size Channels | 0.1, 0.2, 0.3, 0.5, 1.0 μm | |
| Flow Rate | 2.83L/min | 28.3L/min |
| Zero Time | <=10min | |
| Maximum Rated Particle Concentration | 35000 particles/L | |
| Environmental Temperature | Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa | |
Features of Condensation Particle Counter
Application of Condensation Particle Counter
