| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUJING |
| Model Number: | L02B |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500units/month |
| Name: | L02B Liquid(Oil) Particle Counter For Laboratory Analysis | Size Range: | 1-100*μm (ISO4402)；4-70μm (C) (ISO11171) |
|---|---|---|---|
| Detection Channel: | 8 | Maximum Detection Concentration: | 12000 Particle/ml |
| Sampling Speed: | 20 Ml/min | Detection Viscosity: | <200 CSt |
| High Light: | Laboratory Analysis Liquid Particle Counter,Portable Oil Particle Counter,12000 Particle/Ml Oil Particle Counter |
||

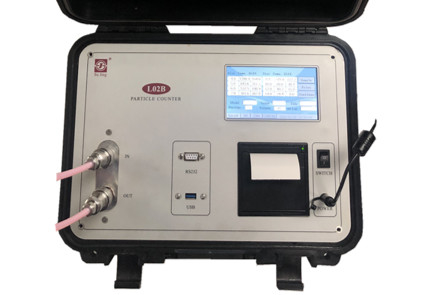

L02B Portable Liquid(Oil) Particle Counter For Laboratory Analysis
The L02B Portable (Oil) Liquid Particle Counter is an instrument suitable for both on-site testing and laboratory analysis. The instrument uses the principle of photoobscuration to measure the size and quantity of tiny particulate contaminants in liquid media.
Features
Specification
| Size Range | 1-100*μm (ISO4402)；4-70μm (C) (ISO11171) |
| Detection Channel | 8 |
| Maximum Detection Concentration | 12000 particle/ml |
| Sampling Speed | 20 ml/min |
| Sample volume accuracy | ±3% |
| Detection Viscosity | <200 cSt |
| Sample Temperature | ≤70℃ |
| Display | 7 inch LCD color touch screen |
| Data Output | RS232 interface, USB interface, built-in printer |
| Power | AC 220V±10%,50HZ；DC 16.4V |
| Dimension | 410(L)×210(H)×330(W) mm |
| Weight | 13kg |
| Usage Environment | 0-50℃ |
