Semiconductor Grade Six-Channel Air Particle Counter with 316L Electropolished Stainless Steel for Wafer Fab Cleanroom Monitoring

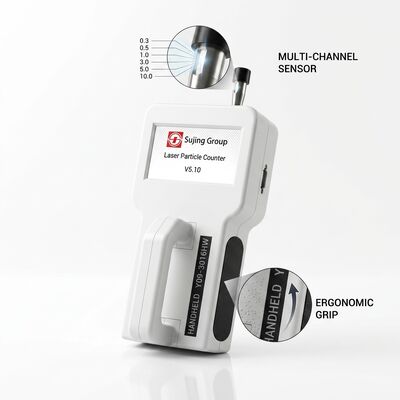

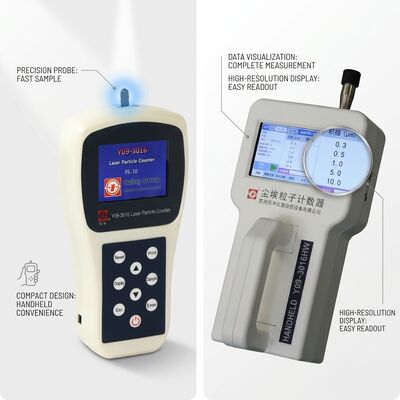

Semiconductor Grade Six-Channel Air Particle Counter Y09-SC100

Y09-SC100 Semiconductor Grade Six-Channel Air Particle Counter for Wafer Fab

The Y09-SC100 Semiconductor Grade Six-Channel Air Particle Counter is engineered from the ground up for the extraordinary cleanliness requirements of modern semiconductor wafer fabrication facilities. In advanced semiconductor manufacturing where critical feature dimensions are measured in nanometers, even single-digit particle counts in the cleanroom environment can cause killer defects that destroy integrated circuit functionality and reduce production yield. The Y09-SC100 addresses this challenge by combining ultra-clean materials and construction with precision particle detection capable of supporting ISO Class 1 (Class 0.1) cleanroom certification and monitoring programs at the most advanced semiconductor manufacturing nodes.

The instrument enclosure is fabricated from 316L electropolished stainless steel, selected for its exceptional corrosion resistance, minimal particle shedding characteristics, and compatibility with the aggressive cleanroom cleaning protocols employed in semiconductor facilities. All internal components are screened for ultra-low volatile organic compound (VOC) outgassing to prevent molecular contamination that can compromise photolithography processes. The Y09-SC100 carries SEMI S2 and S8 safety certifications, confirming compliance with the semiconductor industry's stringent equipment safety standards for environmental, health, and safety considerations. Full electrostatic discharge (ESD) safe design protects sensitive semiconductor wafers and devices from electrostatic damage during monitoring activities in production areas.

• Ultra-Clean Materials Construction: 316L electropolished stainless steel enclosure provides exceptional corrosion resistance, minimal particle shedding, and compatibility with aggressive semiconductor cleanroom cleaning protocols. Internal components are selected and tested for ultra-low VOC outgassing to prevent molecular contamination that can compromise advanced photolithography and etching processes.
• SEMI Certified Safety Compliance: SEMI S2 certification confirms compliance with semiconductor manufacturing equipment safety guidelines for environmental, health, and safety considerations. SEMI S8 certification verifies compliance with ergonomics engineering guidelines specific to semiconductor manufacturing equipment, ensuring safe and efficient operator interaction during routine monitoring activities.
• Complete ESD Protection: Full electrostatic discharge safe design includes conductive housing materials, grounding provisions, and static-dissipative touchscreen overlay that prevents electrostatic charge accumulation on instrument surfaces. All external connectors feature ESD protection diodes to prevent damage from handling events in ESD-sensitive production areas.
• Industrial Communication Protocols: RS-485 Modbus RTU interface enables direct integration with semiconductor facility monitoring systems (FMS) and manufacturing execution systems (MES) using the industry-standard Modbus protocol. Ethernet connectivity with embedded web server provides browser-based remote monitoring, configuration, and data access from any network-connected workstation.
• Semiconductor-Specific Monitoring Modes: Pre-configured sampling protocols aligned with SEMI E49 and E70 standards for particle monitoring in semiconductor manufacturing environments. Configurable sampling grids support efficient mapping of wafer fabrication bays, photolithography areas, and process tool environments with automatic data organization by bay, tool, and process step.

The Y09-SC100 serves advanced semiconductor manufacturing facilities across the full range of cleanroom monitoring applications. In wafer fabrication cleanrooms operating at ISO Class 1-3, the instrument provides the high-sensitivity particle monitoring essential for contamination control in photolithography areas where 193nm immersion and EUV lithography tools demand extraordinarily clean environments to maintain process yield. The instrument supports continuous monitoring in wafer processing bays for deposition, etching, ion implantation, and chemical mechanical planarization (CMP) operations where maintaining stable cleanroom conditions is critical for process control.

Semiconductor packaging and test facilities utilize the Y09-SC100 for ISO Class 5-8 cleanroom monitoring in wafer bumping, flip-chip assembly, and advanced packaging operations. Photomask manufacturing facilities employ the instrument for ultra-clean environment monitoring in mask blank production and patterning areas where sub-micron contamination directly impacts photomask quality. Compound semiconductor facilities producing RF, optoelectronic, and power devices benefit from the instrument's compatibility with specialized cleanroom environments. The Y09-SC100 also supports semiconductor equipment manufacturers performing cleanroom qualification and acceptance testing of process tools prior to shipment and installation at customer fabrication facilities.

Each Sujing air particle counter is carefully packaged in a durable export-grade carton with high-density foam inserts ensuring maximum protection during international shipping. Standard packaging includes the main instrument unit, isokinetic sampling probe, power adapter with charging cable, zero-count filter, thermal printer paper roll, USB communication cable, PC software installation media, calibration certificate, comprehensive user manual, and protective carrying case. All shipments undergo thorough pre-dispatch inspection including functional testing across all six particle channels, zero-count verification, flow rate calibration check, and communication interface testing.

Sujing Instrument maintains an ISO 9001:2015 certified quality management system with complete traceability from raw material sourcing through final product delivery. Each instrument undergoes rigorous quality assurance testing including 24-hour burn-in, multi-point calibration verification, and full functional validation before release. We provide comprehensive after-sales support including a 12-month standard warranty, lifetime technical consultation, remote diagnostic assistance, and optional on-site calibration with maintenance services performed by factory-trained technicians. Our global service network covers over 60 countries worldwide.

For regulated industries requiring formal cleanroom compliance documentation, we provide complete qualification and validation support packages including Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) protocols upon request. Our application engineering team is available to assist with custom configurations and specialized monitoring solutions.
